Air Handler

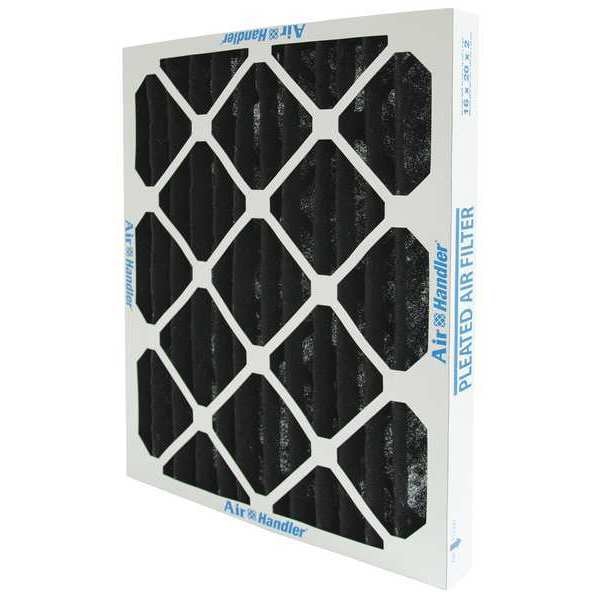

Activated Carbon Air Filter, 20x24x2", Standards: ASHRAE


product price: $26.95
/ea
Sold in multiples of 12 for $323.40

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Nominal Filter Size 20x24x2
  • Nominal Depth 2 in
  • Nominal Height 20 in
  • Nominal Width 24 in
  • Carbon Concentration 20 g /sq ft
See all product information

Product Information

Dimensions

Nominal Filter Size 20x24x2
Nominal Depth 2 in
Nominal Height 20 in
Nominal Width 24 in
Actual Depth 1 3/4 in
Actual Filter Size 19-3/4 in x 23-3/8 in x 1-3/4 in
Actual Height 19 3/4 in
Actual Width 23 3/8 in

Details

Carbon Concentration 20 g /sq ft
Common Applications Nuisance Odor Removal
Max. Air Flow 500 fpm
Standards ASHRAE
Initial Resistance @ 300 fpm 0.18 in wc
Item Odor Removal Pleated Air Filter
Recommended Final Resistance 1.0 in wc
Filter Efficiency - Air Filters 25 %
Frame Included Yes
Style - Air Filters Panel
Gasket Material None
Air Flow @ 500 fpm 1,667 cfm
Filters Out Odor Removal
Initial Resistance 0.48" WC
Air Filter Item Odor Removal Pleated Air Filter
Max. Velocity 500 fpm
Gasket Location None
Air Flow @ 300 fpm 1,000 cfm
Media Area 10 sq ft
Pleats per Linear Foot 9
Initial Resistance @ 500 fpm 0.30 in wc
CCL4 Activity 60 %
Air Flow 250 fpm
Media Color Black
Frame or Header Material Beverage Board
Final Resistance 1.00" WC
Max. Temp. 180 Degrees F
Performance Rating Odor Removal
Media Material Impregnated Carbon
Prefilter Pleated

Description

Odor Removal Pleated Air Filter, Style - Air Filters Panel, Nominal Filter Size 20x24x2, Filter Efficiency - Air Filters 25 Percent, Media Material Impregnated Carbon, Common Applications Nuisance Odor Removal, Carbon Concentration 20 g /sq ft, CCL4 Activity 60 Percent, Frame or Header Material Beverage Board, Media Color Black, Media Area 10 sq ft, Performance Rating Odor Removal, Pleats per Linear Foot 9, Filters Out Odor Removal, Air Flow @ 300 fpm 1,000 cfm, Air Flow @ 500 fpm 1,667 cfm
