  5. Mini-Pleat Air Filter, 24x24x4", MERV 11

This item is Discontinued.

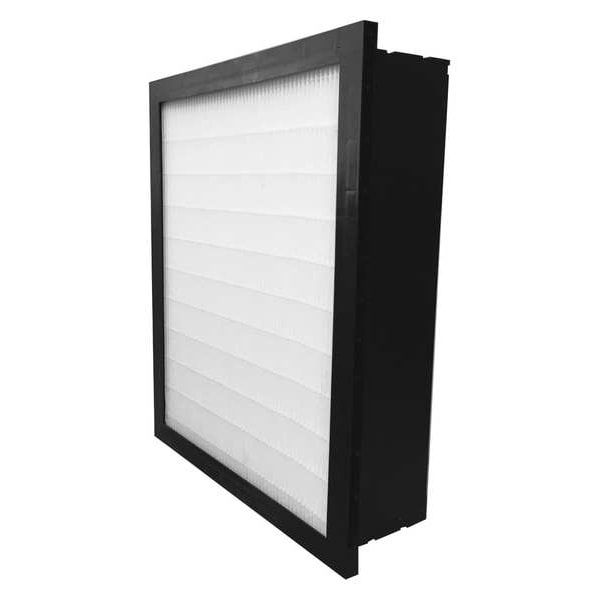

Air Handler Mini-Pleat Air Filter, 24x24x4", MERV 11 2GFD1

Mini-Pleat Air Filter, 24x24x4", MERV 11 (Discontinued)

  • Mfr # 2GFD1
  • Zoro # G8493834
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2GFD1
Zoro #
G8493834
UPC #
190735007334
Country of Origin
United States

Dimensions

Nominal Filter Size
24x24x4
Nominal Depth
4 in
Nominal Height
24 in
Nominal Width
24 in
Actual Filter Size
23-3/8 in x 23-3/8 in x 3-3/4 in
Actual Height
23 3/8 in
Actual Depth
3 3/4 in
Actual Width
23 3/8 in

Details

Performance Rating
MERV 11
Air Filter Header Type
Single Header
Gasket Location
None
Media Material
Synthetic
Item
Mini-Pleat Air Filter
Frame or Header Material
Plastic
Removes Particles Down To
1.0 to 3.0 microns
Air Flow @ 625 fpm
2,500 cfm
Air Flow
500 fpm
MERV
11
Filter Efficiency - Air Filters
65 %
Initial Resistance
0.27" WC
Media Separator Construction
Glue
Features
Single Header
Recommended Final Resistance
1.5 in wc
Gasket Material
None
Final Resistance
1.5" WC
Max. Temp.
160 Degrees F
Air Filter Media Type
Synthetic
Filter Efficiency
65%
Material
100% Synthetic Media
Air Flow @ 500 fpm
2,000 cfm
Media Color
White
Air Flow @ 300 fpm
1,200 cfm
With/Without Gasket
No
Air Filter Item
Mini-Pleat Air Filter
Standards
UL 900
Max. Velocity
625 fpm
Filter Pack Enclosure
Plastic Frame
Initial Resistance @ 500 fpm
0.20 in wc
Filters Out
Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets
Media Area
52 sq ft
Style - Air Filters
Box
Max. Air Flow
2000 cfm

Description

Mini-Pleat Air Filter, Style - Air Filters Box, Performance Rating MERV 11, Nominal Filter Size 24x24x4, Filter Efficiency - Air Filters 65 Percent, Media Material Synthetic, Frame or Header Material Plastic, Air Filter Header Type Single Header, Gasket Location None, Gasket Material None, Media Color White, Media Area 52 sq ft, Media Separator Construction Glue, Filters Out Auto Emission Particulates, Coal Dust, Humidifier Dust, Lead Dust, MERV 9-12 Legionella, Milled Flour, Nebulizer Droplets
