This item is Discontinued.

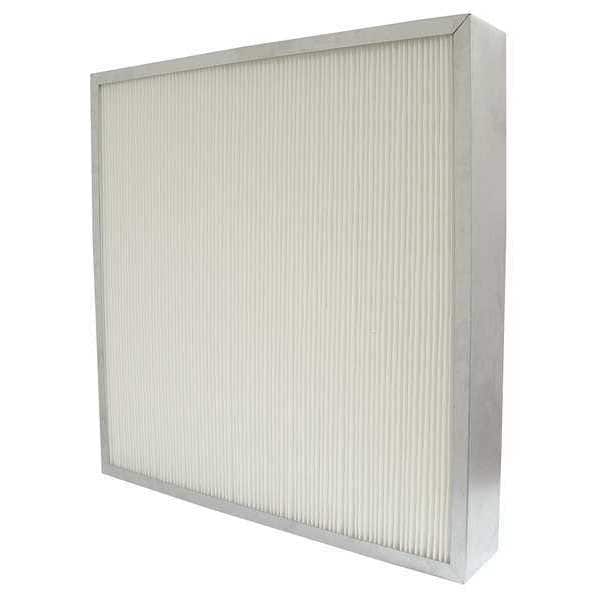

Air Handler Mini-Pleat Air Filter, 24x24x4", MERV 14 2GFN6

Mini-Pleat Air Filter, 24x24x4", MERV 14 (Discontinued)

  • Mfr # 2GFN6
  • Zoro # G7492536
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2GFN6
Zoro #
G7492536
UPC #
190735007761
Country of Origin
United States

Dimensions

Nominal Filter Size
24x24x4
Nominal Depth
4 in
Nominal Height
24 in
Nominal Width
24 in
Actual Depth
3 3/4 in
Actual Width
23 3/8 in
Actual Filter Size
23-3/8 in x 23-3/8 in x 3-3/4 in
Actual Height
23 3/8 in

Details

Performance Rating
MERV 14
Air Filter Header Type
Single
Gasket Location
None
Media Material
Fiberglass
Item
Mini-Pleat Air Filter
Max. Velocity
625 fpm
Media Separator Construction
Glue
Frame or Header Material
Metal
With/Without Gasket
No
Removes Particles Down To
0.3 to 1.0 microns
Air Flow @ 500 fpm
2,000 cfm
Max. Temp.
160 Degrees F
Gasket Material
None
Air Flow
500 fpm
Max. Air Flow
2000 cfm
Recommended Final Resistance
1.5 in wc
MERV
14
Air Filter Media Type
Fiberglass
Style - Air Filters
Box
Media Color
White
Filter Efficiency - Air Filters
95 %
Air Filter Item
Mini-Pleat Air Filter
Initial Resistance @ 500 fpm
0.75 in wc
Air Flow @ 625 fpm
2,500 cfm
Filter Efficiency
95%
Media Area
52 sq ft
Material
100% Synthetic Media
Standards
UL 900
Air Flow @ 300 fpm
1,200 cfm
Initial Resistance
0.48" WC
Final Resistance
1.5" WC
Features
Single Header
Filter Pack Enclosure
Metal Frame
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments

Description

Mini-Pleat Air Filter, Style - Air Filters Box, Performance Rating MERV 14, Nominal Filter Size 24x24x4, Filter Efficiency - Air Filters 95 Percent, Media Material Fiberglass, Frame or Header Material Metal, Air Filter Header Type No Header, Gasket Location None, Gasket Material None, Media Color White, Media Area 52 sq ft, Media Separator Construction Glue
