  5. Rigid Cell Air Filter, 20x24x12"

This item is Discontinued.

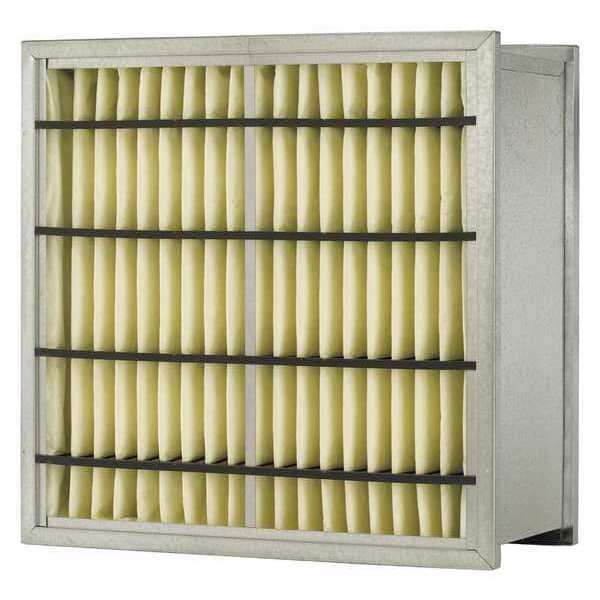

Air Handler Rigid Cell Air Filter, 20x24x12" 2GHG2

Rigid Cell Air Filter, 20x24x12" (Discontinued)

  • Mfr # 2GHG2
  • Zoro # G4532071
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2GHG2
Zoro #
G4532071
UPC #
190735009536
Country of Origin
Multiple

Dimensions

Nominal Filter Size
20x24x12
Nominal Depth
12 in
Nominal Height
20 in
Nominal Width
24 in
Actual Width
23 3/8 in
Header Size
13/16"
Actual Depth
11 1/2 in
Actual Filter Size
19-3/8 in x 23-3/8 in x 11-1/2 in
Actual Height
19 3/8 in

Details

Performance Rating
MERV 14
Air Filter Header Type
Single Header
Gasket Location
None
Air Flow @ 625 fpm
2,083 cfm
Header
Single
Max. Temp.
180 Degrees F
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments
Air Flow
500 fpm
Air Flow @ 500 fpm
1,666 cfm
Frame or Header Material
Galvanized Steel
Media Separator Construction
Metal Pleat
Media Color
Pink
Initial Resistance
0.71" WC
Style - Air Filters
Box
Frame/Header Material
Corrosion Resisitant Steel
Media Area
40 sq ft
Initial Resistance @ 500 fpm
0.65 in wc
Air Filter Item
Rigid Cell Air Filter
Initial Resistance @ 300 fpm
0.39 in wc
Filter Efficiency
95%
Final Recommended Resistance
1.50" WC
MERV
14
Recommended Final Resistance
1.5 in wc
Item
Rigid Cell Air Filter
Gasket Material
None
Media Material
Fiberglass
Standards
UL Classified
Max. Air Flow
500 fpm
Filter Efficiency - Air Filters
95 %
Air Filter Media Type
Fiberglass
Max. Velocity
500 fpm
Removes Particles Down To
0.3 to 1.0 microns
Air Flow @ 300 fpm
1,000 cfm

Description

Rigid Cell Air Filter, Style - Air Filters Box, Performance Rating MERV 14, Nominal Filter Size 20x24x12, Filter Efficiency - Air Filters 95 Percent, Media Material Fiberglass, Frame or Header Material Galvanized Steel, Air Filter Header Type Single Header, Gasket Location None, Gasket Material None, Media Color Pink, Media Area 40 sq ft, Media Separator Construction Metal Pleat
