  5. Rigid Cell Air Filter, 24x24x12"

This item is Discontinued.

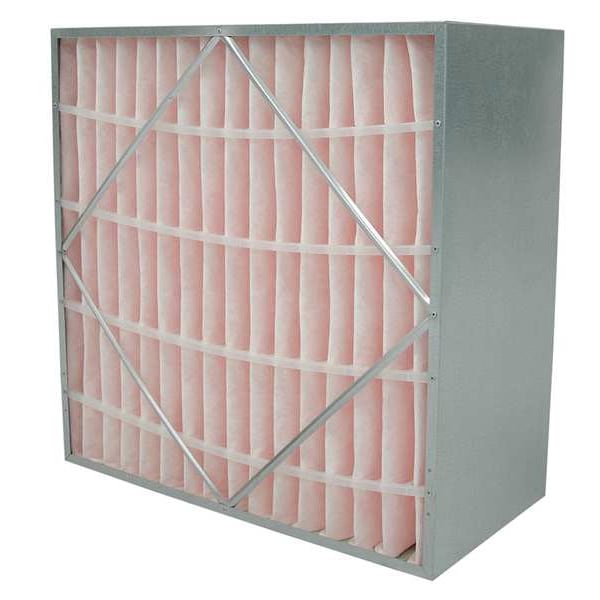

Air Handler Rigid Cell Air Filter, 24x24x12" 2HYW6

Rigid Cell Air Filter, 24x24x12" (Discontinued)

  • Mfr # 2HYW6
  • Zoro # G3751754
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2HYW6
Zoro #
G3751754
UPC #
190735010808
Country of Origin
Multiple

Dimensions

Nominal Filter Size
24x24x12
Nominal Depth
12 in
Nominal Height
24 in
Nominal Width
24 in
Actual Depth
11 1/2 in
Actual Filter Size
23-3/8 in x 23-3/8 in x 11-1/2 in
Actual Height
23 3/8 in
Actual Width
23 3/8 in

Details

Performance Rating
MERV 13
Air Filter Header Type
No Header
Gasket Location
None
Recommended Final Resistance
1.5 in wc
Max. Air Flow
500 fpm
Initial Resistance @ 500 fpm
0.44 in wc
Frame/Header Material
Corrosion Resisitant Steel
Max. Velocity
500 fpm
Media Separator Construction
Metal Pleat
Frame or Header Material
Galvanized Steel
MERV
13
Header
None
Air Filter Media Type
Synthetic
Media Area
50 sq ft
Item
Rigid Cell Air Filter
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments
Air Flow @ 500 fpm
2,000 cfm
Air Flow @ 300 fpm
1,200 cfm
Initial Resistance
0.54" WC
Air Flow
500 fpm
Air Filter Item
Rigid Cell Air Filter
Final Recommended Resistance
1.00" WC
Media Material
Synthetic
Initial Resistance @ 300 fpm
0.26 in wc
Filter Efficiency - Air Filters
85 %
Media Color
Yellow
Removes Particles Down To
0.3 to 1.0 microns
Filter Efficiency
85%
Air Flow @ 625 fpm
2,500 cfm
Gasket Material
None
Standards
Classified as to Flammability only, Class 2 R13458
Style - Air Filters
Box
Max. Temp.
180 Degrees F

Description

Rigid Cell Air Filter, Style - Air Filters Box, Performance Rating MERV 13, Nominal Filter Size 24x24x12, Filter Efficiency - Air Filters 85 Percent, Media Material Synthetic, Frame or Header Material Galvanized Steel, Air Filter Header Type No Header, Gasket Location None, Gasket Material None, Media Color Yellow, Media Area 50 sq ft, Media Separator Construction Metal Pleat
