  9. V-Bank Air Filter, 12x24x12", MERV 15
Shop All Mini-Pleat & V-Bank Filters
Air Handler

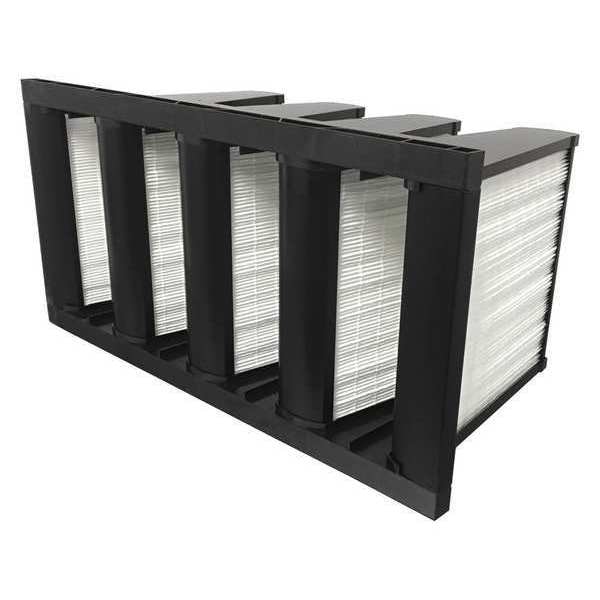

V-Bank Air Filter, 12x24x12", MERV 15

product price: $121.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Nominal Filter Size 12x24x12
  • Performance Rating MERV 14
  • Number of Vs 4
  • Air Filter Header Type Single Header
  • Gasket Location None
See all product information

Product Information

Dimensions

Nominal Filter Size 12x24x12
Nominal Height 12 in
Nominal Width 24 in
Nominal Depth 12 in
Actual Depth 11 1/2 in
Actual Filter Size 11-1/2 in x 23-3/8 in x 11-1/2 in
Actual Height 11 1/2 in
Actual Width 23 3/8 in

Details

Performance Rating MERV 14
Number of Vs 4
Air Filter Header Type Single Header
Gasket Location None
Media Material Fiberglass
Recommended Final Resistance 1.5 in wc
Air Flow @ 625 fpm 1,250 cfm
Max. Air Flow 650 fpm
Final Resistance 1.5" WC
Air Flow @ 500 fpm 1,000 cfm
Air Filter Media Type Fiberglass
Filters Out Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments
Features Heavy Duty
MERV 15
Media Area 98 sq ft
Item V-Bank Air Filter
Removes Particles Down To 0.3 to 1.0 microns
Max. Temp. 160 Degrees F
Standards UL 900
Air Filter Item V-Bank Air Filter
Media Color White
Air Flow 500 fpm
Gasket Material None
Filter Efficiency 95%
Style - Air Filters Box
Filter Efficiency - Air Filters 95 %
Initial Resistance 0.30" WC
Filter Pack Enclosure Plastic Frame
With/Without Gasket No
Air Flow @ 300 fpm 1,000 cfm
Air Flow @ 750 fpm 1,500 cfm
Frame or Header Material Plastic
Initial Resistance @ 500 fpm 0.38

Description

V-Bank Air Filter, Style - Air Filters Box, Performance Rating MERV 14, Nominal Filter Size 12x24x12, Filter Efficiency - Air Filters 95 Percent, Media Material Fiberglass, Frame or Header Material Plastic, Air Filter Header Type Single Header, Number of Vs 4, Gasket Location None, Gasket Material None, Media Color White, Media Area 98 sq ft
