This item is Discontinued.

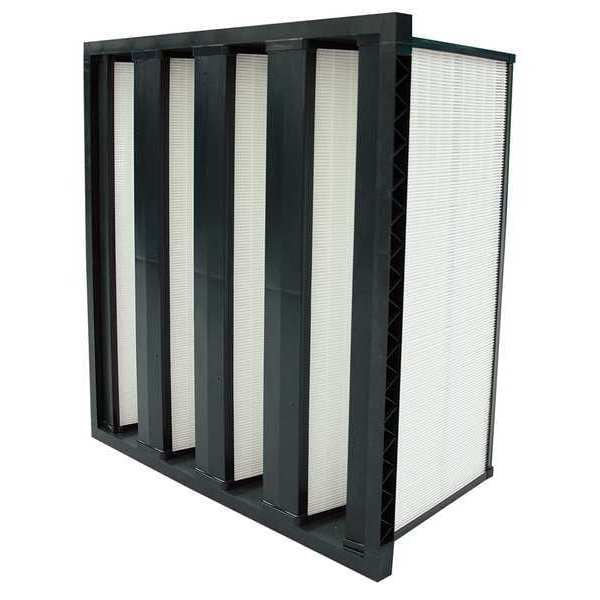

Air Handler V-Bank Air Filter, 20x24x12", MERV 13 2GHP4

V-Bank Air Filter, 20x24x12", MERV 13 (Discontinued)

  • Mfr # 2GHP4
  • Zoro # G6483321
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2GHP4
Zoro #
G6483321
UPC #
190735009895
Country of Origin
United States

Dimensions

Nominal Filter Size
20x24x12
Nominal Depth
12 in
Nominal Height
20 in
Nominal Width
24 in
Actual Width
23 3/8 in
Actual Depth
11 1/2 in
Actual Height
19 3/8 in
Actual Filter Size
19-3/8 in x 23-3/8 in x 11-1/2 in

Details

Performance Rating
MERV 13
Air Filter Header Type
Single Header
Gasket Location
None
Media Material
Fiberglass
Item
V-Bank Air Filter
Frame or Header Material
Plastic
Air Filter Item
V-Bank Air Filter
Filter Efficiency - Air Filters
85 %
Final Resistance
1.5" WC
Number of V’s
4
Standards
UL 900
Filter Efficiency
85%
Recommended Final Resistance
1.5 in wc
Removes Particles Down To
0.3 to 1.0 microns
Style - Air Filters
Box
Max. Temp.
160 Degrees F
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Most Tobacco Smoke, Paint Pigments
Initial Resistance @ 500 fpm
0.29 in wc
MERV
13
Media Color
White
Initial Resistance
0.28" WC
Air Flow @ 750 fpm
2,500 cfm
Air Flow @ 500 fpm
1,667 cfm
Air Flow @ 625 fpm
2,083 cfm
Number of Vs
4
Filter Pack Enclosure
Plastic Frame
Air Filter Media Type
Synthetic
Media Area
162 sq ft
Air Flow @ 300 fpm
1,000 cfm
Gasket Material
None
With/Without Gasket
No
Air Flow
500 fpm
Max. Air Flow
1920 cfm
Material
100% Synthetic Media
Number of V’s
4

Description

V-Bank Air Filter, Style - Air Filters Box, Performance Rating MERV 13, Nominal Filter Size 20x24x12, Filter Efficiency - Air Filters 85 Percent, Media Material Synthetic, Frame or Header Material Plastic, Air Filter Header Type Single Header, Number of Vs 4, Gasket Location None, Gasket Material None, Media Color White, Media Area 162 sq ft
