Shop AIR PRODUCTS & CONTROLS

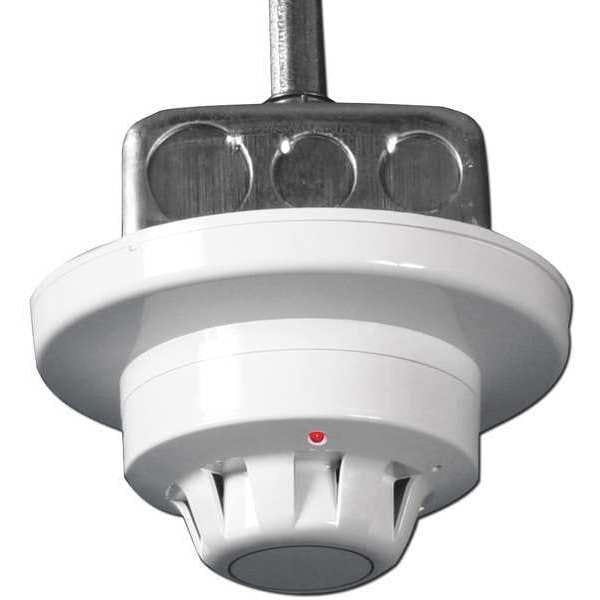

Smoke Detector, 4" Height, Plastic

  • Mfr # HS-100-P

  • Zoro # G4362456

product price:
$
147.99
/ea
Free Shipping & Returns

Key Features

Power Source
Hardwired
Overall Width
4 in
Overall Height
2.6 in
Maximum Operating Temperature
140 Degrees F
Includes
Magnet
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HS-100-P
Zoro #
G4362456
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
4 in
Overall Height
2.6 in
Depth
4 in
Length
6 in
Outside Diameter
6 in

Details

Item
Duct Smoke Detector
Power Source
Hardwired
Maximum Operating Temperature
140 Degrees F
Includes
Magnet
Standards
CSFM, MEA, UL 268A
Air Velocity (FPM)
0 to 3000 fpm
Amps AC
10 A
Ambient Temp. Limits (F)
32 Degrees to 140 Degrees F
Alarm Current
139mA @ 24V AC, 20mA @ 230V AC, 34mA @ 115V AC, 48mA @ 24V DC
Finish
Plastic
Type
Photoelectric
For Use With
All APC Remote Operation Accessories
Voltage
115V AC, 230V AC, 24V AC, 24V DC
Humidity Range
0 to 85% RH Non-Condensing/ Non-Freezing
Compatible With
Air Products Sl-2000, Building Automation and Fire Alarm Systems, MSR Series Remote, RT-3000 and SM-501 Series Duct Smoke Detectors
Color
White
Minimum Operating Temperature
32 Degrees F
Detects
Smoke
Mount Type
Surface
Humidity Operating Range
0% to 85% RH
Detector Type
Smoke Detector
Shape
Round
Resistance Properties
Tamper Resistant
AC Contact Rating
139 mA @ 24V, 20 mA @ 230V, 34 mA @ 115V
Includes Mounting Hardware
Yes
Sensor Type
Photoelectric
Housing Material
Polycarbonate
Visual Alert Type
Alarm Red, LED Flashing
Alert Type
Light
DC Contact Rating
48 mA @ 24V
Current Rating
139 mA @ 24V AC, 20 mA @ 230V AC, 34 mA @ 115V AC, 48 mA @ 24V AC
Voltage Rating
115V AC, 230V AC, 24V AC, 24V DC
Relative Humidity - Minimum
0 %
Relative Humidity - Maximum
85 %
Power Source - TS Only
Hardwired
Power Source - old
Hardwired

Description

Duct Smoke Detector, Photoelectric, Finish Plastic, Duct Mounting, Alarm Current 20mA @ 230VAC, 34mA @ 115VAC, 139mA @ 24VAC, 48mA @ 24VDC, Depth (In.) 4, Height (In.) 4, Length (In.) 6, Width (In.) 4, Ambient Temp. Limits (F) 32 to 140 Degrees , Air Velocity (FPM) 0 to 3000, Amps AC 10, Humidity Range ( Percent RH) 0 to 85 Non-Condensing/ Non-Freezing, Voltage 230VAC, 115VAC, 24VAC, 24VDC, Standards UL, cUL, CSFM, MEA, Includes HS-100 duct smoke detector, installation instructions, magnet

Restrictions

Hazardous material
