Shop AIR PRODUCTS & CONTROLS

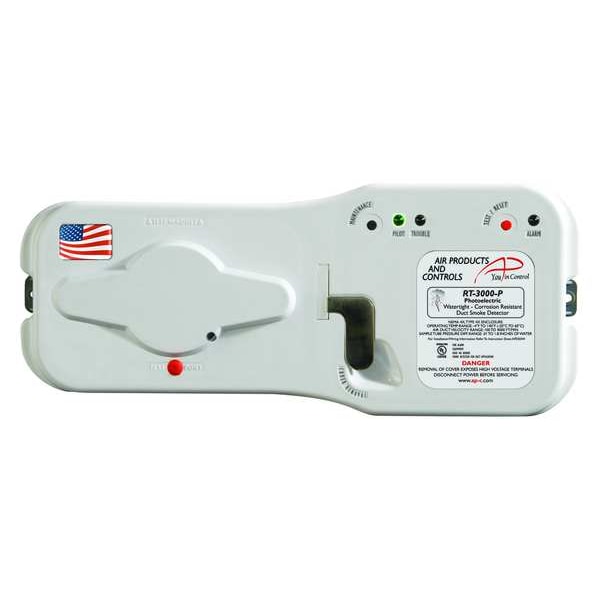

Smoke Detector, Painted Enamel, 5-1/2" H

  • Mfr # RT-3000-P
  • Zoro # G4362438
product price:
$
266.99
/ea
Free Shipping & Returns

Key Features

Power Source
Hardwired
Overall Width
5.5 in
Overall Height
2.25 in
Maximum Operating Temperature
140 Degrees F
Includes
Magnet
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RT-3000-P
Zoro #
G4362438
UPC #
-
Country of Origin
United States
Item
Duct Smoke Detector
Power Source
Hardwired
Maximum Operating Temperature
140 Degrees F
Includes
Magnet
Standards
UL 268A
Finish
Plastic
Amps AC
10 A
Ambient Temp. Limits (F)
-4 Degrees to 140 Degrees F
Voltage
115V AC, 230V AC, 24V AC, 24V DC
For Use With
All APC Remote Operation Accessories
Type
Photoelectric
Air Velocity (FPM)
100 to 4000 fpm
Alarm Current
100mA @ 24V DC, 251mA @ 24V AC, 29mA @ 230V AC, 50mA @ 115V AC
Compatible With
Building Automation and Fire Alarm Systems
Humidity Range
10 to 93% RH Non-Condensing/ Non-Freezing
Color
White
Detects
Smoke
Minimum Operating Temperature
-4 Degrees F
Mount Type
Duct
Humidity Operating Range
10% to 93% RH
DC Contact Rating
100 mA @ 24V
Voltage Rating
115V AC, 230V AC, 24V AC, 24V DC
Detector Type
Smoke Detector
Includes Mounting Hardware
Yes
Current Rating
100 mA @ 24V, 251 mA @ 24V AC, 29 mA @ 230V AC, 50 mA @ 115V AC
Visual Alert Type
Alarm Red, Fault Yellow, LED Flashing
Environment
Indoor, Outdoor
Shape
Rectangular
AC Contact Rating
251 mA @ 24V, 29 mA @ 230V, 50 mA @ 115V
Resistance Properties
Corrosion Resistant
Housing Material
Polycarbonate
Alert Type
Light
Sensor Type
Photoelectric
Relative Humidity - Minimum
10 %
Relative Humidity - Maximum
93 %
Power Source - TS Only
Hardwired
Power Source - old
Hardwired

Description

Duct Smoke Detector, Photoelectric, Finish Plastic, Duct Mounting, Alarm Current 29mA @ 230VAC, 50mA @ 115VAC, 251mA @ 24VAC, 100mA @ 24VDC, Depth (In.) 2-1/4, Height (In.) 5-1/2, Length (In.) 13-1/2, Width (In.) 2-1/4, Ambient Temp. Limits (F) -4 to 140 Degrees , Air Velocity (FPM) 100 to 4000, Amps AC 10, Humidity Range ( Percent RH) 10 to 93 Non-Condensing/ Non-Freezing, Voltage 230VAC, 115VAC, 24VAC, 24VDC, Standards NEMA 4X Outdoor, UL, CSFM
