  9. Shutter Mount Exhaust Fan, 10", 1 Speed, 611 cfm, 115V
Shop All Shutter Mount Exhaust Fans
Airmaster Fan

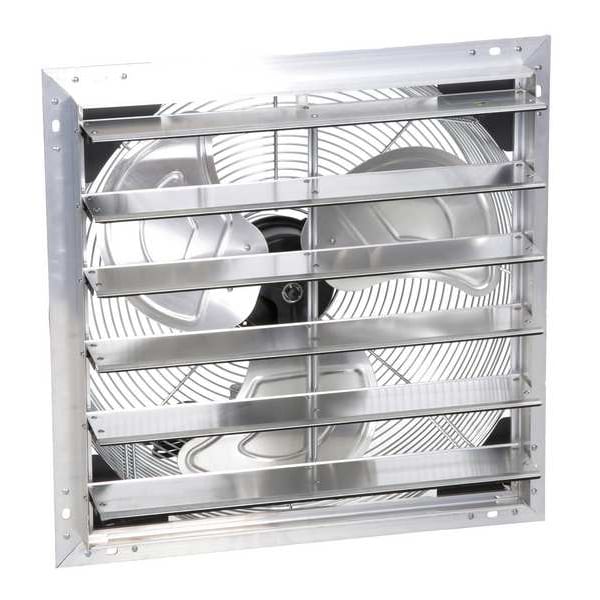

Shutter Mount Exhaust Fan, 10", 1 Speed, 611 cfm, 115V

product price: $229.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Blade Dia. 10 in
  • Number of Speeds 2
  • Fan Voltage 115V AC
  • CFM @ 0.000-In. SP 611
  • Exhaust/Supply Fan Motor HP 1/30 hp
See all product information

Product Information

Dimensions

Blade Dia. 10 in
Width 13 1/8 in
Height 13 1/8 in
Max. Depth 8 in
Duct Diameter 10 3/8 in
Power Cord Length 9 ft
Overall Width 13 1/8 in
Blade Diameter 10 in
Manufacturer Warranty Length 1 yr
For Cut-Out Height 11 in
Overall Height 13 1/8 in
For Cut-Out Length 11 in
For Cut-Out Width 11 in
Overall Depth 8 in
Profile Height Family Medium

Details

Exhaust/Supply Fan Item Exhaust Fan
Number of Speeds 2
Fan Voltage 115V AC
CFM @ 0.000-In. SP 611
Exhaust/Supply Fan Motor HP 1/30 hp
Square Opening Required 10-1/2 to 20 in
Phase 1
Motor RPM 1050
Frame Finish Aluminum
Item Shutter Mount Exhaust Fan
Standards C-UL Listed, OSHA Compliant, UL Listed
Full Load Amps 0.6
Guard Material Steel
Blade Material Aluminum
Motor Enclosure Open Dripproof
Frame Material Aluminum
Includes 9 ft Cord, Shutter
Drive Package Included No
Motor Type 3-Phase
Bearing Type Ball
Number of Blades 5
CFM @ 0.125-In. SP 318
Max. Ambient Temp. 104 Degrees F
Hz 60
Thermal Protection Yes
Motor Insulation Class B
Sones @ 0.000-In. SP @ 5 Ft. 6.6
Voltage 115V
Maximum Airflow 611 cfm
Number of Fans 1
Noise Level @ 0.000 in SP @ 5 ft 6.6 sones
Ventilation Type Exhaust
Control Type Pull Chain
Fan Style Shutter-Mounted
Drive Type Direct Drive
Supply Airflow @ 0.000 in SP 496 cfm
Noise Level @ 0.100 in SP @ 5 ft 6.6 sones
Electrical Connection Plug-In
Temperature Thermostat Opens 104 Degrees F
Motor Speed 1,050 RPM
Maximum Ambient Operating Temperature 104 Degrees F
Guard Type Exhaust
Housing Material Aluminum, Steel
For Maximum Wall Thickness 5 1/2 in
Motor Horsepower 1/30 hp
Full Load Current 0.6 A
Includes Dehumidistat No
Nameplate Voltage 115V AC
For Minimum Wall Thickness 3 in
Includes Motor Yes
Guard Finish Chrome
Exhaust Airflow @ 0.000 in SP 611 cfm
Maximum Noise Level 6.6 sones
Exhaust Airflow @ 0.125 in SP 318 cfm
Housing Finish Galvanized
Exhaust Airflow @ 0.100 in SP 496 cfm
Assembled Assembled
Duct Shape Round
Wattage 56 W

Description

Shutter Mount Exhaust Fan, Assembled Assembled, Blade Diameter 10 in, Blade Material Aluminum, Control Type Pull Chain, Drive Type Direct Drive, Duct Diameter 10 3/8 in, Exhaust Airflow @ 0.000 in SP 611 cfm, For Cut-Out Height 11 in, For Cut-Out Width 11 in, For Maximum Wall Thickness 5 1/2 in, For Minimum Wall Thickness 3 in, Frame Material Aluminum, Guard Finish Chrome, Guard Material Steel, Guard Type Exhaust, Housing Material Aluminum, Steel, Housing Finish Galvanized
