Dayton

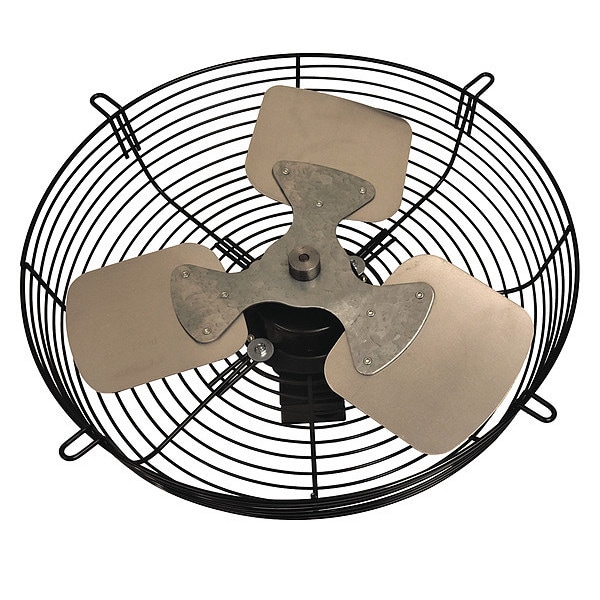

Guard Mounted Exhaust Fan, Blade 16" Dia.

product price: $153.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Blade Dia. 16 in
  • CFM @ 0.000-In. SP 1,280 cfm
  • CFM @ 0.125-In. SP 540 cfm
  • Fan Voltage 115V AC
  • Exhaust/Supply Fan Motor HP 1/10 hp
See all product information

Product Information

Dimensions

Blade Dia. 16 in
Outside Dia. 17 5/8 in
Max. Depth 6 in
Overall Diameter 17 5/8 in
Overall Depth 6 in
Blade Diameter 16 in
Overall Width 18 in
Overall Height 18 in

Details

Exhaust/Supply Fan Item Exhaust Fan
Item Guard-Mounted Exhaust Fan
CFM @ 0.000-In. SP 1,280 cfm
CFM @ 0.125-In. SP 540 cfm
Fan Voltage 115V AC
Exhaust/Supply Fan Motor HP 1/10 hp
Motor RPM 1,550 RPM
Operating Amps 1.0
Max. Ambient Temp. 104 Degrees F
Includes Intake Guard
Motor Insulation Class B
Mounting Holes O.C. 12 29/32 in
Motor Type Permanent Split Capacitor
Motor Enclosure Totally Enclosed Air Over
Phase 1
Thermal Protection Yes
Sones @ 0.000-In. SP @ 5 Ft. 6.1
Wire Guard Finish Black Powder Coated
Blade Material Aluminum
Standards OSHA Compliant
Hz 60
Guard Material Steel
Bearing Type Ball
Mounting Position Horizontal or Vertical
Number of Blades 3
Frame Material Steel
Frame Finish Powder Coated
Exhaust Airflow @ 0.125 in SP 540 cfm
For Minimum Wall Thickness 3 in
Housing Finish Powder-Coated
Nameplate Voltage 115V AC
Maximum Coverage Area 350 sq ft
Includes Motor Yes
Motor Speed 1,550 RPM
Ventilation Type Exhaust
Guard Finish Powder Coated
Speed Controllable Yes
Wattage 103 W
Housing Material Steel
Ring-Mount Style Flange
Guard Type Intake
Noise Level @ 0.100 in SP @ 5 ft 6.04 sones
Includes Dehumidistat No
Fan Style Guard-Mounted
Maximum Noise Level 6.1 sones
Noise Level @ 0.000 in SP @ 5 ft 6.1 sones
Exhaust Airflow @ 0.000 in SP 1,280 cfm
Maximum Ambient Operating Temperature 104 Degrees F
Assembled Assembled
Number of Fans 1
Number of Speeds 1
Exhaust Airflow @ 0.100 in SP 873 cfm
Electrical Connection Hardwired
For Maximum Wall Thickness 6 in
Motor Horsepower 1/10 hp
Drive Type Direct Drive
Mounting Orientation Horizontal, Vertical
Frequency 60 Hz
Maximum Airflow 1,280 cfm
Full Load Current 1 A

Description

Guard-Mounted Exhaust Fan, Assembled Assembled, Blade Diameter 16 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 1,280 cfm, For Maximum Wall Thickness 6 in, For Minimum Wall Thickness 3 in, Frame Finish Powder Coated, Frame Material Steel, Guard Finish Powder Coated, Guard Material Steel, Guard Type Intake, Housing Material Steel, Housing Finish Powder-Coated, Includes Intake Guard, Includes Dehumidistat No

Restrictions

  • This item has been restricted from sale in the following states: CA
