  9. Standard Duty Air Circulator, Ceiling, Wall Mount, 24 in Blade Dia, 115V, 2,460/3,460/4,400 cfm

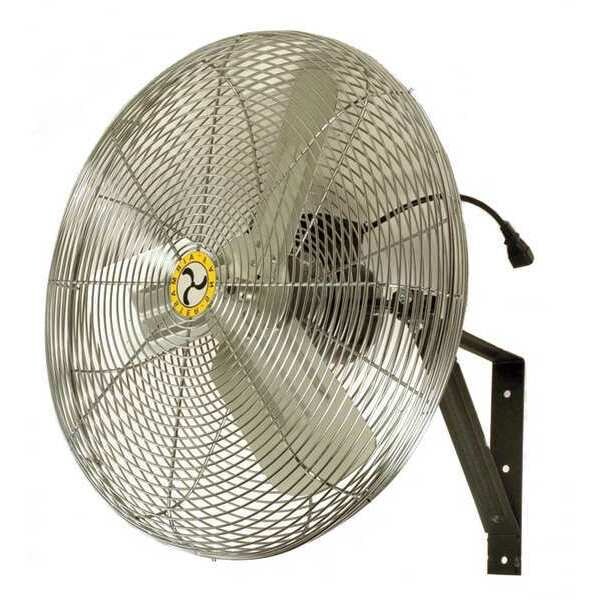

Airmaster Fan Standard Duty Air Circulator, Ceiling, Wall Mount, 24 in Blade Dia, 115V, 2,460/3,460/4,400 cfm 71572 - main

Standard Duty Air Circulator, Ceiling, Wall Mount, 24 in Blade Dia, 115V, 2,460/3,460/4,400 cfm

  • Mfr # 71572

  • Zoro # G5300416

product price: $342.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Non-Oscillating
Number of Speeds
3
Voltage
115V
Phase
1
Motor HP
1/4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
71572
Zoro #
G5300416
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
24 in
Width
27 in
Outside Dia.
27 in
Shaft Dia.
5/8 in
Height
96 in
Max. Depth
14 in
Fan Cord Length
15 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
3
Voltage
115V
Phase
1
Motor HP
1/4
Air Flow
2,460/3,460/4,400 cfm
Drive Type
Direct Drive
Blade Material
Galvanized Steel
Sound Level
74 dBA
Item
Air Circulator
Air Velocity @ 40 Ft.
400 fpm
Includes
Secondary Safety Support Cable, Wall Bracket
Fan Mounting Location
Ceiling, Wall
Air Velocity @ 10 Ft.
700 fpm
Air Velocity @ 20 Ft.
400 fpm
Motor Type
Permanent Split Capacitor
Hz
60 Hz
Max. Ambient Temp.
104 Degrees F
Application
Spot Cooling
Guard Material
Steel
Wire Guard Finish
Nickel Chrome
CFM High
4400
Motor Enclosure
Totally Enclosed Air Over
CFM/Watt
18.2
Fan Style
Standard Duty
Standards
Osha
CFM Medium
3460
Mobile/Stationary
Stationary
Thermal Protection
Auto
Housing Material
Steel
Motor Insulation
Class B
Watts
260
Environmental Applications
Commercial
Assembled
No
Air Velocity @ 80 Ft.
200 fpm
Fan Accessory Style
Standard
Motor RPM
1,100 RPM
CFM Low
2460
Number of Blades
3
Air Velocity @ 60 Ft.
200 fpm
Bearing Type
Ball
Wheeled Base
Stationary
Material
Steel
Amps
3.5
Motor hp
1/4 hp

Description

Mounted Fan, Blade Dia. 24 in, Stationary, Non-Oscillating, 3 Speeds, Voltage 115V AC, 1 Phase, CFM High 4400, CFM Low 2460, Air Velocity @ 20 Ft. 400 fpm, Motor HP 1/4 hp, Motor RPM 1100, Operating Amps 3.5, Fan Mounting Location Ceiling, Wall, Fan Accessory Style Standard, Fan RPM 1100, Sound Level 74 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 260 W, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 27 In., Height 96 in, Width 27 in, Max. Depth 14 In.
