Shop AIRMASTER FAN

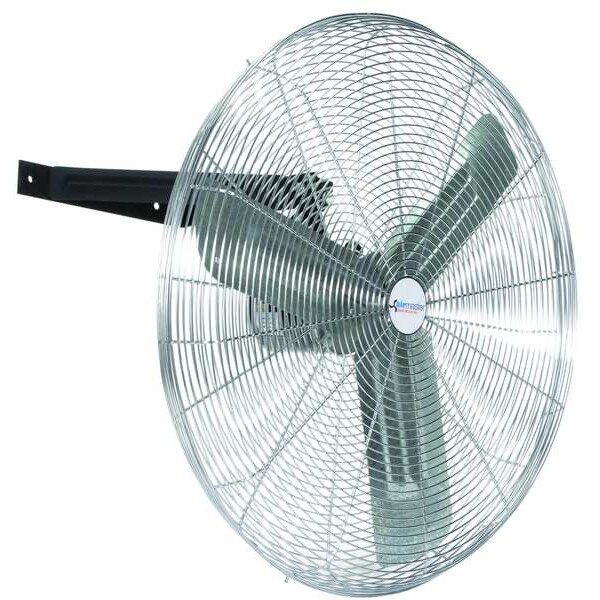

Standard Duty Air Circulator, Ceiling, Wall Mount, 30 in Blade Dia, 115V, 2,700/4,400/6,100 cfm

  • Mfr # 71573

  • Zoro # G5288412

product price:
$
344.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Non-Oscillating
Number of Speeds
3
Voltage
115V AC
Phase
1
Motor HP
1/4 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71573
Zoro #
G5288412
UPC #
783429715730
Country of Origin
China

Dimensions

Blade Diameter
30 in
Max. Depth
21"
Shaft Dia.
5/8 in
Width
33 in
Height
96 in
Outside Dia.
33"
Fan Cord Length
15 ft
Max. Mounting Height
15 ft

Details

Oscillation
Non-Oscillating
Number of Speeds
3
Voltage
115V AC
Phase
1
Motor HP
1/4 hp
Air Flow
2,700/4,400/6,100 cfm
Drive Type
Direct Drive
Blade Material
Steel
Sound Level
76 dBA
Item
Mounted Fan
Application
Spot Cooling and People Cooling
Thermal Protection
Auto
Watts
250 W
Air Velocity @ 60 Ft.
200 fpm
Mobile/Stationary
Stationary
Air Velocity @ 10 Ft.
800 fpm
Hz
60 Hz
Motor Type
Permanent Split Capacitor
CFM Medium
4400
Environmental Applications
Commercial
Air Velocity @ 40 Ft.
200 fpm
Includes
Mounting Bracket, Secondary Safety Support Cable
Air Velocity @ 20 Ft.
500 fpm
NEMA Plug Configuration
5-15P
Fan Mounting Location
Ceiling, Wall
Motor Enclosure
Totally Enclosed Air-Over
Housing Material
Steel
CFM High
6100
Fan Accessory Style
Standard
Number of Blades
3
Fan Style
Standard
Number of Conductors
3
Air Velocity @ 80 Ft.
100 fpm
Bearing Type
Ball
Standards
cULus, OSHA
CFM Low
2700
Motor RPM
1100
Motor Insulation
B
Assembled
No
Requires
Assembly
Wire Guard Finish
Nickel Chrome-Plated
Guard Material
Steel
Max. Ambient Temp.
104 Degrees F
Wheeled Base
Stationary
Material
Steel
Amps
3.3
Motor hp
1/4 hp
NEMA plug Configuration
5-15p
Airflow
2,700 cfm, 4,400 cfm, 6,100 cfm
Mount Type
Bracket
Housing Finish - Fans
Galvanized
RPM
1,100 RPM

Description

Mounted Fan, Blade Dia. 30 in, Stationary, Non-Oscillating, 3 Speeds, Voltage 115V AC, 1 Phase, CFM High 6100, CFM Low 2700, Air Velocity @ 20 Ft. 500 fpm, Motor HP 1/4 hp, Motor RPM 1100, Operating Amps 3.3, Fan Mounting Location Wall, Fan Accessory Style Standard, Fan RPM 1100, Sound Level 76 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 250 W, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 33 In., Height 96 in, Width 33 in, Max. Depth 21 In.
