  13. Multi-Function Encapsulated Timing Relay, Square, Watchdog, 1 Functions 12V DC, SPDT

This item is Discontinued.

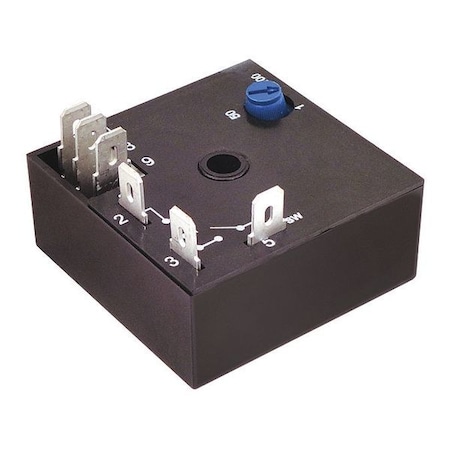

Airotronics Multi-Function Encapsulated Timing Relay, Square, Watchdog, 1 Functions 12V DC, SPDT TGMPL70100A1H

Multi-Function Encapsulated Timing Relay, Square, Watchdog, 1 Functions 12V DC, SPDT (Discontinued)

  • Mfr # TGMPL70100A1H
  • Zoro # G5238274
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TGMPL70100A1H
Zoro #
G5238274
UPC #
-
Country of Origin
United States

Dimensions

Body Depth - Relay
2.0 in
Overall Height - Relay
1.3 in
Body Width - Relay
2.0 in
Body Height - Relay
0.85 in
Body Width
2 in
Body Depth
0.75 in
Flat Pin Width
0.25 in
Mounting Hole Diameter
0.25 in
Overall Depth
1.14 in
Body Height
2 in

Details

Item
Multi-Function Encapsulated Timing Relay
Delay Function
Watchdog
Number of Delay Functions
1
Minimum Time Setting
1 sec
Maximum Time Setting
100 sec
Base Shape
Square
Number of Pins
6
Coil Voltage
12V DC
Current Rating
10 A
Contact Form
SPDT
Contact Rating (DC)
10 A @ 12V
Adjustment Method - Timer
Potentiometer
Contact Form - Relay
SPDT
Type of Output
Relay
Input Voltage
12V DC
Min. Time Setting - Timer
1 sec
Input or Control Voltage Range
12VDC
Item - Relay
Multi-Function Encapsulated Timing Relay
Function
Interval/Watchdog
Input or Control Voltage
12V DC
Standards
RoHS Compliant, UR
Status Indicator
None
Adjustment Method
Potentiometer
Function - Timing Relay
Interval, Watchdog
Number of Pins - Relay
6
Mounting
Surface
Mounting - Relay
Surface
Pins
6
DC Contact Rating - Relay
10A @ 12V
Max. Time Setting - Timer
1 min 40 sec
Operating Functions
4, 11
Timer Range
1.00 sec. to 100.00 sec.
Contact Amp Rating (Resistive)
10A
Output
Relay
Electrical Connection
Quick-Connect Terminal
Contact Material
Silver Tin
Reset Method
Time-Limit Reset
Maximum Operating Temperature
149 Degrees F
Minimum Operating Temperature
-13 Degrees F
Electrical Operating Durability
100,000
Frequency
50/60 Hz
Adjustment Interface
Digital
Operating Time Accuracy
+/-10%
Mechanical Operating Durability
20,000,000
Mounting Style
Surface

Description

Multi-Function Encapsulated Timing Relay, Adjustment Method Potentiometer, Base Shape Square, Coil Voltage 12V DC, Contact Form SPDT, Contact Rating (DC) 10 A @ 12V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Watchdog, Electrical Connection Quick-Connect Terminal, Flat Pin Width 0.25 in, Input Voltage 12V DC, Minimum Time Setting 1 sec, Maximum Time Setting 100 sec, Number of Pins 6, Mounting Style Surface, Adjustment Interface Digital, Body Depth 0.75 in, Body Height 2 in
