No Product Image Available
Shop AKG

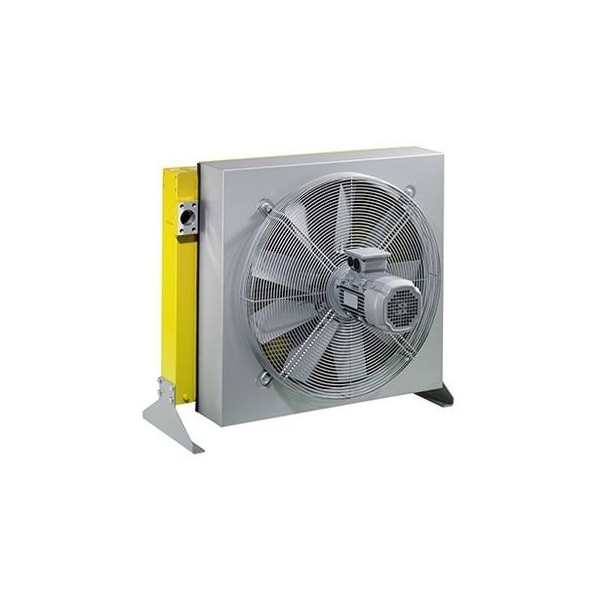

Oil Cooler, 4 to 50 gpm, 3-Phase AC Motor

  • Mfr # A30-3

  • Zoro # G7885711

product price:  $2,053.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

HP Heat Removed
30 hp
Motor Type - Oil Coolers
AC
Max. Flow
50 gpm
Max. Pressure
377 psi
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A30-3
Zoro #
G7885711
UPC #
-
Country of Origin
United States

Dimensions

Inlet Port Thread Size
SAE #20
Depth (In.)
16.75
Height (In.)
24.03
Port Size
SAE #20
Width (In.)
25.59
Overall Height
24.03 in
Overall Depth
16.75 in
Overall Width
25.59 in
Motor Frame Size
56C
Outlet Port Thread Size
SAE #20

Details

HP Heat Removed
30 hp
Motor Type - Oil Coolers
AC
Max. Flow
50 gpm
Max. Pressure
377 psi
Voltage
230/460V AC
Number of Phases
3
Construction
Aluminum
Flow Ranges (GPM)
4 to 50
Max. Pressure (PSI)
377
Item
Forced Air Oil Cooler
NEMA/IEC Frame
56C
Includes
Mounting Feet
Type
3-Phase AC Motor
Max. Temp.
250 Degrees F
Motor Amps
3.8
Motor HP
1
Finish
Powder Coated
With Motor/Without Motor
With Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Fan Blade Material
PPG
Fan Guard Material
Steel
Outlet Port Thread Gender
Female
No. of Fans
1
Includes Mounting Hardware
Yes
Mounting Bracket Material
Steel
Full Load Amps
3.8 A
HP
1 hp
Flow Range
4 to 50 gpm
Shroud Material
Steel
Bypass Valve Included
No
Max. Operating Temp.
250 Degrees F
Inlet Port Thread Gender
Female
Oil Cooler Finish
Powder Coated
Oil Cooler Material
Aluminum
Max. Oil Temp.
250 Degrees F
Compatible Hydraulic Fluids
Up to ISO 320
Includes Mounting Bracket
Yes

Description

Forced Air Oil Cooler, HP Heat Removed 30 hp, Voltage 230/460V AC, Number of Phases 3, Max. Flow 50 gpm, Max. Pressure 377 psi, Inlet Port Thread Size SAE #20, Inlet Port Thread Gender Female, Outlet Port Thread Size SAE #20, Outlet Port Thread Gender Female, Overall Height 24.03 in, Overall Width 25.59 in, Overall Depth 16.75 in, Flow Range 4 to 50 gpm, 3.8 A Full Load Amps, 1 hp HP, Motor Frame Size 56C, Motor Type - Oil Coolers AC
