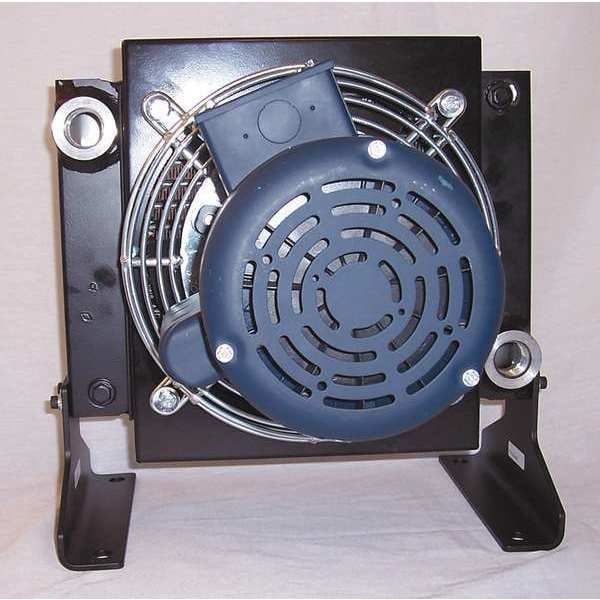

Akg Oil Cooler, AC, 2-30 GPM, 115/230 V, 1/4 HP AL5-1 - main

Oil Cooler, AC, 2-30 GPM, 115/230 V, 1/4 HP

  • Mfr # AL5-1

  • Zoro # G2079743

product price: $1,091.99
/ea
Free Shipping & Returns

Key Features

HP Heat Removed
5 hp
Motor Type - Oil Coolers
AC
Max. Flow
30 gpm
Max. Pressure
377 psi
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AL5-1
Zoro #
G2079743
UPC #
-
Country of Origin
United States

Dimensions

Inlet Port Thread Size
SAE #12
Depth (In.)
12.56
Height (In.)
13.74
Width (In.)
13.78
Port Size
SAE #12
Overall Width
13.78 in
Overall Height
13.74 in
Overall Depth
12.56 in
Outlet Port Thread Size
SAE #12
Motor Frame Size
56C

Details

HP Heat Removed
5 hp
Motor Type - Oil Coolers
AC
Max. Flow
30 gpm
Max. Pressure
377 psi
Voltage
115/230V AC
Number of Phases
1
Type
AC Motor
Flow Ranges (GPM)
2 to 30
Item
Forced Air Oil Cooler
Construction
Aluminum
Motor Amps
5.4/2.7
Max. Pressure (PSI)
377
Motor HP
1/4
Max. Temp.
250 Degrees F
NEMA/IEC Frame
56C
Finish
Black Painted
Includes
Mounting Feet
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Fan Blade Material
PPG
With Motor/Without Motor
With Motor
Fan Guard Material
Steel
Inlet Port Thread Gender
Female
Includes Mounting Bracket
Yes
HP
0.25 hp
Bypass Valve Included
No
No. of Fans
1
Mounting Bracket Material
Steel
Includes Mounting Hardware
Yes
Outlet Port Thread Gender
Female
Shroud Material
Steel
Max. Oil Temp.
250 Degrees F
Flow Range
2 to 30 gpm
Oil Cooler Material
Aluminum
Oil Cooler Finish
Powder Coated
Full Load Amps
5.4/2.7 A
Compatible Hydraulic Fluids
Up to ISO 320
Max. Operating Temp.
250 Degrees F

Description

Forced Air Oil Cooler, HP Heat Removed 5 hp, Voltage 115/230V AC, Number of Phases 1, Max. Flow 30 gpm, Max. Pressure 377 psi, Inlet Port Thread Size SAE #12, Inlet Port Thread Gender Female, Outlet Port Thread Size SAE #12, Outlet Port Thread Gender Female, Overall Height 13.74 in, Overall Width 13.78 in, Overall Depth 12.56 in, Flow Range 2 to 30 gpm, 5.4/2.7 A Full Load Amps, 0.25 hp HP, Motor Frame Size 56C, Motor Type - Oil Coolers AC
