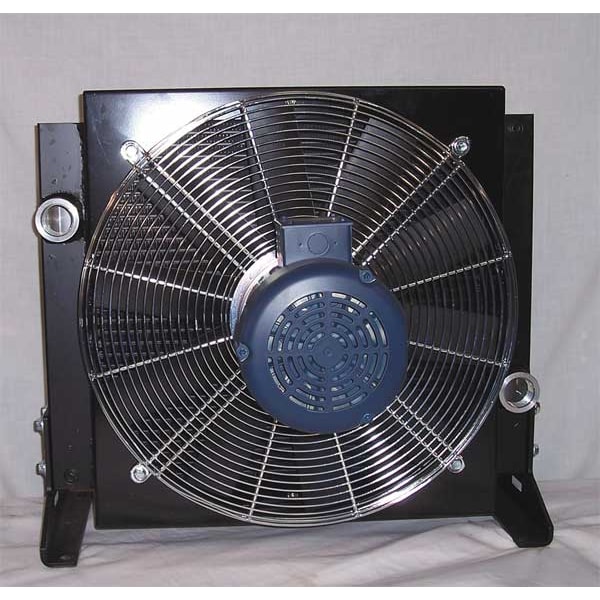

Oil Cooler, AC, 4-50 GPM, 115/230 V, 1 HP

  • Mfr # A30-1

  • Zoro # G3314202

product price:  $1,996.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

HP Heat Removed
30 hp
Motor Type - Oil Coolers
AC
Max. Flow
50 gpm
Max. Pressure
377 psi
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A30-1
Zoro #
G3314202
UPC #
-
Country of Origin
United States

Dimensions

Inlet Port Thread Size
SAE #20
Depth (In.)
16.75
Port Size
SAE #20
Height (In.)
24.03
Width (In.)
25.59
Overall Depth
16.75 in
Overall Width
25.59 in
Overall Height
24.03 in
Outlet Port Thread Size
SAE #20
Motor Frame Size
56C

Details

HP Heat Removed
30 hp
Motor Type - Oil Coolers
AC
Max. Flow
50 gpm
Max. Pressure
377 psi
Voltage
115/230V AC
Number of Phases
1
Type
AC Motor
Item
Forced Air Oil Cooler
Construction
Aluminum
NEMA/IEC Frame
56C
Motor HP
1
Flow Ranges (GPM)
4 to 50
Includes
Mounting Feet
Finish
Black Painted
Motor Amps
12.8/6.4
Max. Pressure (PSI)
377
Max. Temp.
250 Degrees F
Fan Blade Material
PPG
Motor Enclosure Design
Totally Enclosed Fan-Cooled
With Motor/Without Motor
With Motor
Fan Guard Material
Steel
Inlet Port Thread Gender
Female
Compatible Hydraulic Fluids
Up to ISO 320
Outlet Port Thread Gender
Female
Bypass Valve Included
No
Oil Cooler Material
Aluminum
Oil Cooler Finish
Powder Coated
Flow Range
4 to 50 gpm
Mounting Bracket Material
Steel
Includes Mounting Bracket
Yes
No. of Fans
1
HP
1 hp
Shroud Material
Steel
Includes Mounting Hardware
Yes
Max. Operating Temp.
250 Degrees F
Max. Oil Temp.
250 Degrees F
Full Load Amps
12.8/6.4 A

Description

Forced Air Oil Cooler, HP Heat Removed 30 hp, Voltage 115/230V AC, Number of Phases 1, Max. Flow 50 gpm, Max. Pressure 377 psi, Inlet Port Thread Size SAE #20, Inlet Port Thread Gender Female, Outlet Port Thread Size SAE #20, Outlet Port Thread Gender Female, Overall Height 24.03 in, Overall Width 25.59 in, Overall Depth 16.75 in, Flow Range 4 to 50 gpm, 12.8/6.4 A Full Load Amps, 1 hp HP, Motor Frame Size 56C, Motor Type - Oil Coolers AC
