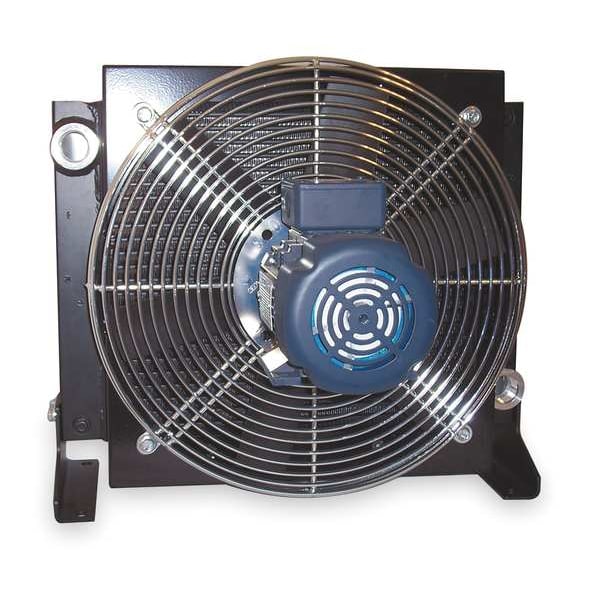

Oil Cooler, AC, 4-50 GPM, 115/230 V, 1/2 HP

  • Mfr # A20-1

  • Zoro # G1744705

product price:
$
1,540.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

HP Heat Removed
20 hp
Motor Type - Oil Coolers
AC
Max. Flow
50 gpm
Max. Pressure
377 psi
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A20-1
Zoro #
G1744705
UPC #
-
Country of Origin
United States

Dimensions

Inlet Port Thread Size
SAE #20
Height (In.)
19.6
Port Size
SAE #20
Width (In.)
21.65
Depth (In.)
15.5
Overall Width
21.65 in
Overall Height
19.6 in
Overall Depth
15.5 in
Outlet Port Thread Size
SAE #20
Motor Frame Size
56C

Details

HP Heat Removed
20 hp
Motor Type - Oil Coolers
AC
Max. Flow
50 gpm
Max. Pressure
377 psi
Voltage
115/230V AC
Number of Phases
1
Flow Ranges (GPM)
4 to 50
Motor HP
1/2 hp
Finish
Black Painted
Type
AC Motor
Motor Amps
8/4
Max. Temp.
250 Degrees F
NEMA/IEC Frame
56C
Max. Pressure (PSI)
377
Includes
Mounting Feet
Item
Forced Air Oil Cooler
Construction
Aluminum
Fan Blade Material
PPG
Fan Guard Material
Steel
With Motor/Without Motor
With Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Flow Range
4 to 50 gpm
Oil Cooler Finish
Powder Coated
Full Load Amps
8/4 A
Max. Oil Temp.
250 Degrees F
Inlet Port Thread Gender
Female
Oil Cooler Material
Aluminum
Compatible Hydraulic Fluids
Up to ISO 320
HP
0.5 hp
Max. Operating Temp.
250 Degrees F
Outlet Port Thread Gender
Female
Mounting Bracket Material
Steel
Includes Mounting Bracket
Yes
No. of Fans
1
Bypass Valve Included
No
Shroud Material
Steel
Includes Mounting Hardware
Yes

Description

Forced Air Oil Cooler, HP Heat Removed 20 hp, Voltage 115/230V AC, Number of Phases 1, Max. Flow 50 gpm, Max. Pressure 377 psi, Inlet Port Thread Size SAE #20, Inlet Port Thread Gender Female, Outlet Port Thread Size SAE #20, Outlet Port Thread Gender Female, Overall Height 19.6 in, Overall Width 21.65 in, Overall Depth 15.5 in, Flow Range 4 to 50 gpm, 8/4 A Full Load Amps, 0.5 hp HP, Motor Frame Size 56C, Motor Type - Oil Coolers AC
