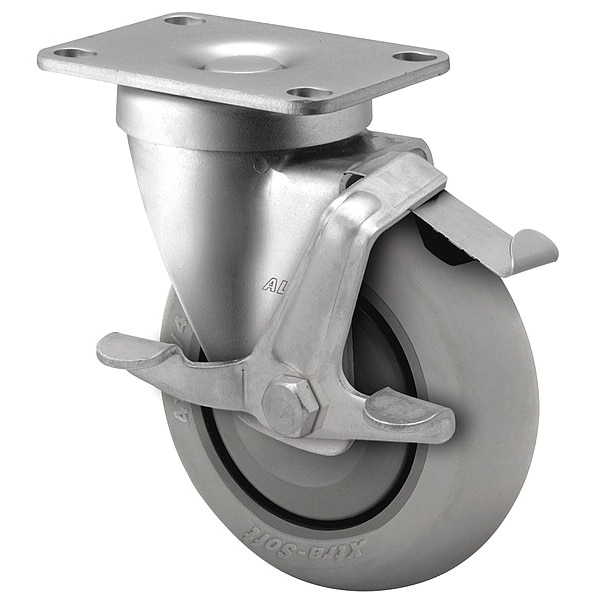

Albion 4" X 1-1/4" Non-Marking Rubber Soft Round Swivel Caster, Face Contact Brake, Loads Up To 250 lb P2XR04028SF - main

4" X 1-1/4" Non-Marking Rubber Soft Round Swivel Caster, Face Contact Brake, Loads Up To 250 lb

  • Mfr # P2XR04028SF

  • Zoro # G7812238

product price:  $60.45
/ea

Key Features

Swivel Lead
1-1/4 in
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
B
Swivel Radius
3 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P2XR04028SF
Zoro #
G7812238
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
3 1/4 in
Wheel Dia.
4 in
Mounting Height
5-1/8 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
For Axle Dia.
3/8 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Length
3 5/8 in
Mounting Plate Width
2 1/2 in
Mounting Plate Thickness
5/32 in
Inside Slot Spacing - Width
1.75 in

Details

Swivel Lead
1-1/4 in
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
B
Core Color
Grey
Wheel/Tread Color
Grey
Frame Color
Gray
Caster Mounting Type
Plate
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Rubber
Inside Bolt Hole Spacing
1-3/4 in X 2-13/16 in
Brake Location
Left Side
Caster Brake Type
Side Brake
Caster Stem Type
Top Plate
Features
Ergonomic, Harsh Environment Wheel, Maintenance Free, Floor Protective Wheel
Wheel/Tread Hardness Rating
Soft
ESD Conductive
No
Load Rating
250 lb
Series
P2 Series
Number of Wheels
1
Operating Temperature Range
-45 to 180 Degrees F
Wheel Bearing Type
Ball
Wheel Core Type
Solid
Swivel Construction
Swivel
Item
Swivel Caster with Brake
Load Rating Range
0 to 299 lb
Non-Marking
Yes
Standards
ROHS Standards, FDA Compliant
Tread Shape
Standard
Outside Bolt Hole Spacing
1-3/4 in X 3-1/16 in
Number of Mounting Holes
4
Caster Sub-Type
Swivel
Swivel Raceway Type
Precision Ball
Swivel Bearing Seal Type
Sealed
Application
Hotel Equipment, Institutional Equipment, Food Service, Racks and Cases, Stock Carts, Laundry Hampers
Wheel Core Material
Polypropylene
NSF Listed
No
Includes Thread Guards
Yes
Includes Spanner Bushing
Yes
Load Capacity - Maximum
250 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
65 Shore A
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Debris-Resistant, Quiet-Roll, Shock-Absorbing

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
