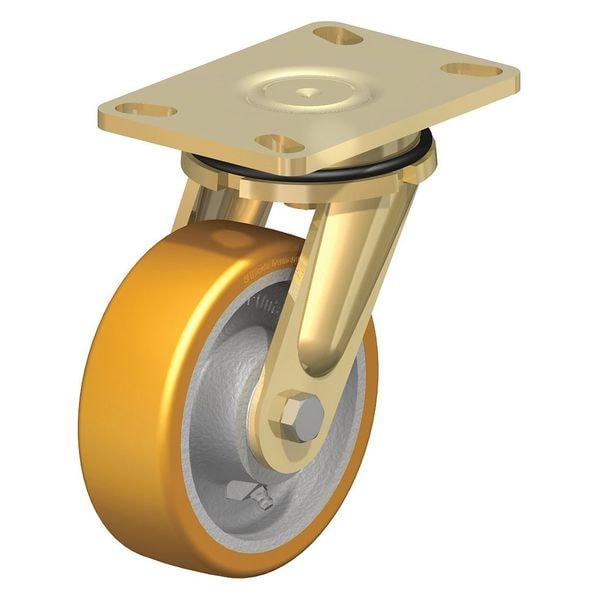

Blickle Swivel Plate Caster, PU, 5", 1320 lb. LS-GTH 127K-16 - main

Swivel Plate Caster, PU, 5", 1320 lb.

  • Mfr # LS-GTH 127K-16

  • Zoro # G0895592

product price:  $192.99
/ea
Free Shipping & Returns

Key Features

Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Overall Height
6.69in
Load Rating
1,320 lb
Stem Dia.
No Stem
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LS-GTH 127K-16
Zoro #
G0895592
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5in
Overall Height
6.69in
Stem Dia.
No Stem
Wheel Width
2in
Mounting Bolt Dia.
1/2 in
Swivel Radius
4-1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.315 in

Details

Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Item
Swivel Caster
Load Rating
1,320 lb
Caster Sub-Type
Swivel
Caster Brake Included
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Core Color
Gray
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Type
No Brake Included
Frame Finish
Zinc Plated, Yellow Passivated
Replacement Wheel
Mfr. No. GTH 127/20K
Non-Marking
Yes
Standards
RoHS, ICWM
Tread Color
Light Brown
System of Measurement
Inch
Caster Mounting Type
Plate
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Tread
Standard
Caster Frame Material
Steel
Extended Lead
No
Includes Thread Guards
No
Load Capacity
1320 lb
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Accessories
Optional: RI-LS-16 (Directional Lock)
Series
LS Series
Wheel Core Material
Cast Iron
Tread Shape
Standard
Number of Mounting Holes
4
Load Rating Range
Heavy-Duty
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
92 Shore A
Wheel/Tread Material
Cast Iron/Polyurethane Elastomer
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel
