  6. 4" X 1-7/8" Cast Iron Swivel Caster, Face Brake, Loads Up To 1000 lb

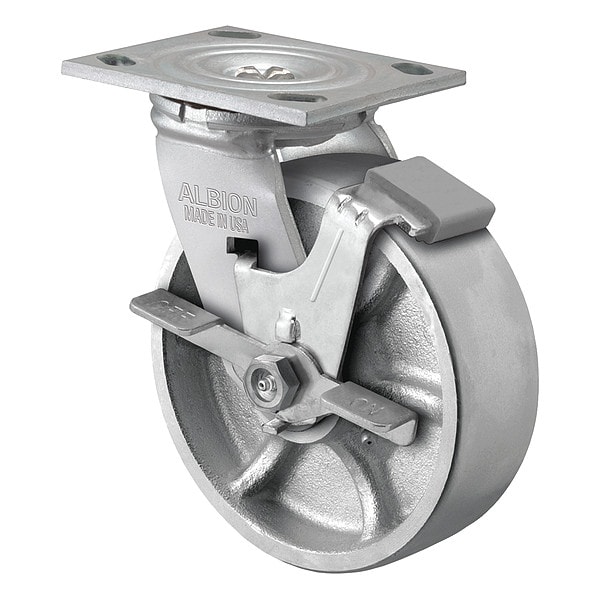

Albion 4" X 1-7/8" Cast Iron Swivel Caster, Face Brake, Loads Up To 1000 lb 16CA04201SFBA - main

4" X 1-7/8" Cast Iron Swivel Caster, Face Brake, Loads Up To 1000 lb

  • Mfr # 16CA04201SFBA

  • Zoro # G400712852

product price:  $69.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Iron
Caster Brake Type
Side Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16CA04201SFBA
Zoro #
G400712852
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5-5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
1/2 in
Swivel Radius
4 3/32 in
Hub Length
2 3/16 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Width
4 in

Details

Item
Swivel with Face Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Iron
Caster Brake Type
Side Brake
Load Rating
1000 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Grey
Wheel Hardness Rating
145 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Grey
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Plate Hole Pattern
B
Operating Temperature Range
Up to +800 Degrees F
Wheel Core Type
Solid
With Toe Plate
No
NSF Listed
Yes
Frame Construction
Cold Forged
Swivel Raceway Type
Double Ball
Wheel Core Material
Iron
Standards
NSF Listed, RoHS Compliant
Features
Heat Resistant Wheel, Impact Resistant Wheel, Kingpin, Medium Heavy Duty Caster, Brake
Application
Shop/Distribution Carts, Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks
Frame Finish
Zinc Plated
Swivel Construction
Kingpin
Caster Stem Type
Top Plate
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Swivel Lead
1 11/16 in
Includes Spanner Bushing
Yes
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
1000 to 2999 lb
Load Capacity - Maximum
1,000 lb
Mounting Plate Shape
Rectangle
Brake Location
Left Side
Mounting Hole Type
Slot
For Surface Type
Asphalt, Grease, Steel

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
