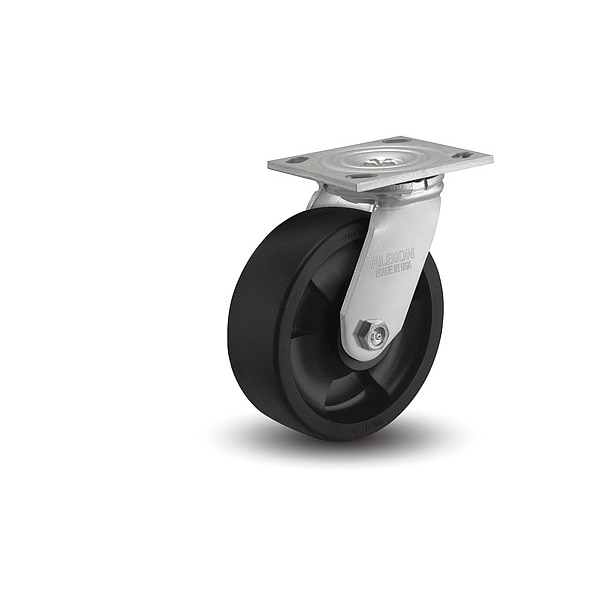

Albion 4" X 2" Non-Marking Nylon Glass Filled Hi Temp Swivel Caster, No Brake, Loads Up To 800 lb 16HT04201S - main

4" X 2" Non-Marking Nylon Glass Filled Hi Temp Swivel Caster, No Brake, Loads Up To 800 lb

  • Mfr # 16HT04201S

  • Zoro # G400712913

product price:  $66.19
/ea

Key Features

Wheel Core Material
Nylon
Mounting Plate Size
4 in x 4 1/2 in
Swivel Lock Type
No Lock Included
Wheel Width
2 in
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
16HT04201S
Zoro #
G400712913
UPC #
-
Country of Origin
United States

Dimensions

Mounting Plate Size
4 in x 4 1/2 in
Wheel Width
2 in
Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3 11/16 in
Mounting Plate Thickness
1/4 in
For Axle Dia.
1/2 in
Mounting Height
5-5/8 in
Hub Length
2 3/16 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in

Details

Wheel Core Material
Nylon
Swivel Lock Type
No Lock Included
Caster Sub-Type
Swivel
Wheel Bearing Type
Roller
Load Rating
800 lb
Caster Mounting Type
Plate
Non-Marking
Yes
Caster Brake Type
No Brake
Frame Construction
Cold Forged
System of Measurement
Inch
Features
Harsh Environment Wheel, Heat Resistant Wheel, Kingpin, Medium Heavy Duty Caster
Caster Frame Material
Steel
Core Color
Black
NSF Listed
Yes
Swivel Lead
1 11/16 in
Includes Thread Guards
No
Wheel/Tread Color
Black
Item
Swivel Caster
Number of Wheels
1
Swivel Raceway Type
Double Ball
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Standards
NSF Listed, RoHS Compliant
With Toe Plate
No
Wheel/Tread Material
Nylon
Wheel/Tread Hardness Rating
Hard
Tread Shape
Donut
Frame Finish
Zinc Plated
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Caster Plate Hole Pattern
B
Caster Stem Type
Top Plate
Number of Mounting Holes
4
Swivel Construction
Kingpin
Operating Temperature Range
-20 Degrees to 480 Degrees F
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Load Rating Range
300 to 999 lb
Includes Spanner Bushing
Yes
Load Capacity - Maximum
800 lb
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
75 Shore D
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Caster Features
Heat-Resistant

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
