  6. 4" X 2" Non-Marking Nylon Maxim Swivel Caster, No Brake, Loads Up To 800 lb

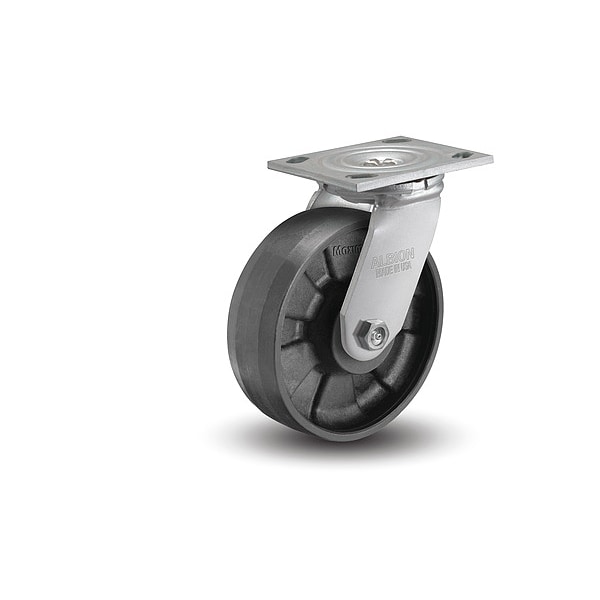

Albion 4" X 2" Non-Marking Nylon Maxim Swivel Caster, No Brake, Loads Up To 800 lb 16NG04201S - main

4" X 2" Non-Marking Nylon Maxim Swivel Caster, No Brake, Loads Up To 800 lb

  • Mfr # 16NG04201S

  • Zoro # G8662295

product price:  $42.95
/ea

Key Features

Mounting Bolt Dia.
3/8 in
Standards
NSF Listed, RoHS Compliant
Caster Frame Material
Steel
Caster Brake Type
No Brake
Wheel Width
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16NG04201S
Zoro #
G8662295
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Swivel Radius
3 11/16 in
Wheel Dia.
4 in
Mounting Plate Thickness
1/4 in
Mounting Plate Size
4 in x 4 1/2 in
For Axle Dia.
1/2 in
Mounting Height
5-5/8 in
Hub Length
2 3/16 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in

Details

Standards
NSF Listed, RoHS Compliant
Caster Frame Material
Steel
Caster Brake Type
No Brake
Non-Marking
Yes
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
System of Measurement
Inch
Item
Swivel Caster
Features
Harsh Environment Wheel, Heat Resistant Wheel, Kingpin, Medium Heavy Duty Caster
Load Rating
800 lb
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Core Color
Black
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
B
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Mounting Type
Plate
Number of Wheels
1
Wheel Core Material
Nylon
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Wheel/Tread Material
Nylon
Includes Thread Guards
No
Swivel Construction
Kingpin
Wheel Core Type
Solid
Tread Shape
Donut
NSF Listed
Yes
Frame Construction
Cold Forged
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Black
Operating Temperature Range
-40 Degrees to +250 Degrees F
With Toe Plate
No
Swivel Lead
1 11/16 in
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Roller
Includes Spanner Bushing
Yes
Load Rating Range
300 to 999 lb
Wheel Hardness Rating
85 Shore D
Load Capacity - Maximum
800 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
