Shop ALBION

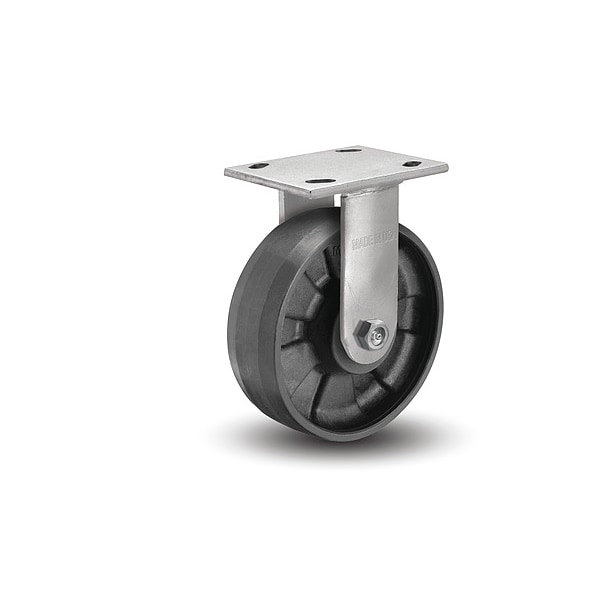

4" X 2" Non-Marking Nylon Maxim Rigid Caster, No Brake, Loads Up To 800 lb

  • Mfr # 16NG04201R

  • Zoro # G8662401

product price:
$
35.59
/ea

Key Features

Caster Mounting Type
Plate
Outside Bolt Hole Spacing
3 in x 3 5/8 in
Inside Bolt Hole Spacing
2 5/8 in x 3 in
Mounting Bolt Dia.
3/8 in
Non-Marking
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16NG04201R
Zoro #
G8662401
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Mounting Plate Size
4 in x 4 1/2 in
Hub Length
2 3/16 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in

Details

Caster Mounting Type
Plate
Outside Bolt Hole Spacing
3 in x 3 5/8 in
Inside Bolt Hole Spacing
2 5/8 in x 3 in
Non-Marking
Yes
Standards
NSF Listed, RoHS Compliant
Item
Plate Caster
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Caster Frame Material
Steel
Caster Plate Hole Pattern
B
Caster Sub-Type
Rigid
Core Color
Black
Load Rating
800 lb
Number of Wheels
1
Caster Brake Type
No Brake
Features
Harsh Environment Wheel, Heat Resistant Wheel, Kingpin, Medium Heavy Duty Caster
Frame Finish
Zinc Plated
System of Measurement
Inch
Wheel/Tread Material
Nylon
With Toe Plate
No
Frame Construction
Cold Forged
Wheel Core Material
Nylon
Swivel Lead
0 in
Tread Shape
Donut
Wheel Core Type
Solid
Wheel/Tread Color
Black
Operating Temperature Range
-40 Degrees to +250 Degrees F
NSF Listed
Yes
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Roller
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Includes Spanner Bushing
Yes
Load Rating Range
300 to 999 lb
Load Capacity - Maximum
800 lb
Wheel Hardness Rating
85 Shore D
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood

Description

Rigid, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
