Shop ALBION

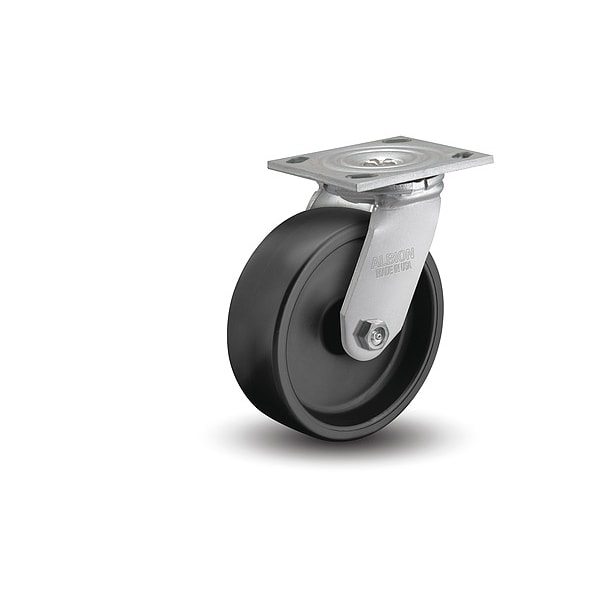

4" X 2" Non-Marking Polypropylene Swivel Caster, No Brake, Loads Up To 450 lb

  • Mfr # 16PB04201S
  • Zoro # G000712986
product price:
$
40.45
/ea

Key Features

Wheel/Tread Material
Polypropylene
Caster Mounting Type
Plate
Wheel Core Material
Polypropylene
Features
Economical Wheel, Kingpin, Medium Heavy Duty Caster
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
16PB04201S
Zoro #
G000712986
UPC #
-
Country of Origin
United States
Wheel/Tread Material
Polypropylene
Caster Mounting Type
Plate
Wheel Core Material
Polypropylene
Features
Economical Wheel, Kingpin, Medium Heavy Duty Caster
Number of Wheels
1
Load Rating
500 lb
Includes Thread Guards
No
Swivel Construction
Kingpin
Inside Bolt Hole Spacing
2 5/8 in x 3 in
System of Measurement
Inch
Frame Construction
Cold Forged
Swivel Lead
1 5/8 in
Tread Shape
Donut
Caster Plate Hole Pattern
B
Wheel Bearing Type
Roller
Swivel Raceway Type
Double Ball
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Wheel/Tread Color
Black
Wheel Core Type
Solid
Operating Temperature Range
-20 Degrees F to 180 Degrees F
Outside Bolt Hole Spacing
3 in x 3 5/8 in
Caster Brake Type
No Brake
Caster Frame Material
Steel
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Item
Plate Caster
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
With Toe Plate
No
Number of Mounting Holes
4
Core Color
Black
Non-Marking
Yes
Includes Spanner Bushing
Yes
Load Rating Range
300 to 999 lb
Load Capacity - Maximum
500 lb
Wheel Hardness Rating
65 Shore D
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Dimensions

Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4 1/2 in
For Axle Dia.
1/2 in
Wheel Width
2 in
Swivel Radius
3 11/16 in
Mounting Height
5 5/8 in
Mounting Plate Thickness
1/4 in
Hub Length
2 3/16 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Fits Chest Size
Economical Wheel, Kingpin, Medium Heavy Duty Caster

Description

Swivel, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
