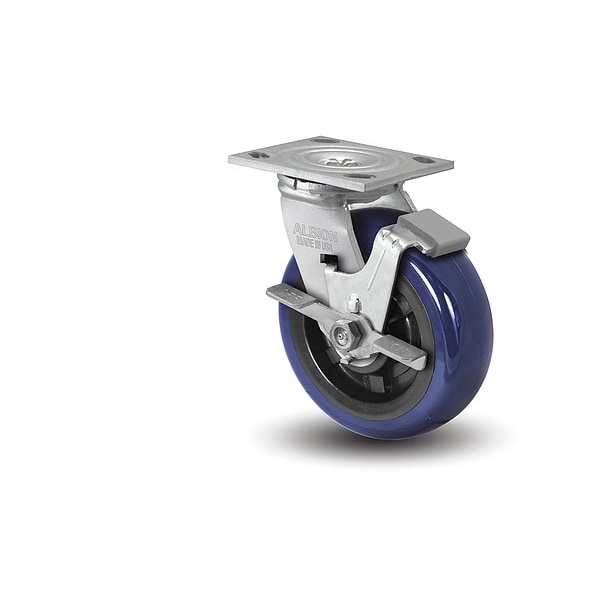

Albion 4" X 2" Non-Marking Polyurethane Premium Swivel Caster, Face Brake, Loads Up To 600 lb 16EG04201SFBA - main

4" X 2" Non-Marking Polyurethane Premium Swivel Caster, Face Brake, Loads Up To 600 lb

  • Mfr # 16EG04201SFBA

  • Zoro # G8662304

product price:  $57.99
/ea

Key Features

Standards
NSF Listed, RoHS Compliant
Wheel Width
2 in
Wheel Dia.
4 in
Caster Mounting Type
Plate
Caster Frame Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16EG04201SFBA
Zoro #
G8662304
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4 3/32 in
For Axle Dia.
1/2 in
Mounting Height
5-5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
Hub Length
2 3/16 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in

Details

Standards
NSF Listed, RoHS Compliant
Caster Mounting Type
Plate
Caster Frame Material
Steel
Non-Marking
Yes
Caster Brake Type
Side Brake
Core Color
Black
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Frame Finish
Zinc Plated
System of Measurement
Inch
Load Rating
600 lb
Item
Swivel with Face Brake
Caster Sub-Type
Swivel
Caster Plate Hole Pattern
B
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Number of Wheels
1
Features
Kingpin, Medium Heavy Duty Caster, Round Tread
Wheel Core Type
Solid
Swivel Lock Type
No Lock Included
Swivel Lead
1 11/16 in
Wheel Bearing Type
Roller
Operating Temperature Range
-40 Degrees to 180 Degrees F
With Toe Plate
No
Includes Thread Guards
No
NSF Listed
Yes
Number of Mounting Holes
4
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Tread Shape
Standard
Wheel/Tread Color
Purple
Wheel/Tread Material
Polyurethane
Frame Construction
Cold Forged
Wheel Core Material
Polypropylene
Swivel Raceway Type
Double Ball
Load Rating Range
300 to 999 lb
Includes Spanner Bushing
Yes
Wheel Hardness Rating
55 Shore D
Load Capacity - Maximum
600 lb
Brake Location
Left Side
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
