  6. 5" X 1-1/4" Non-Marking Polyurethane Swivel Caster, No Brake, Loads Up To 250 lb

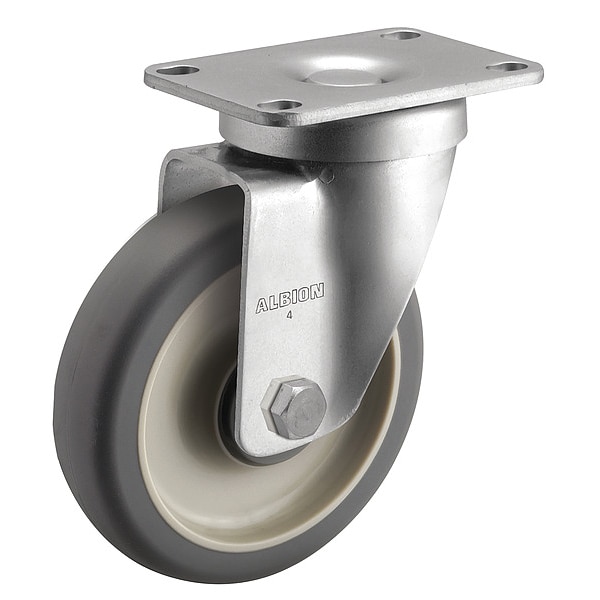

Albion 5" X 1-1/4" Non-Marking Polyurethane Swivel Caster, No Brake, Loads Up To 250 lb P2XA05031S - main

5" X 1-1/4" Non-Marking Polyurethane Swivel Caster, No Brake, Loads Up To 250 lb

  • Mfr # P2XA05031S

  • Zoro # G7812186

product price:  $41.19
/ea

Key Features

Wheel/Tread Material
Polyurethane
Load Rating
250 lb
Series
P2 Series
Caster Plate Hole Pattern
B
Mounting Bolt Dia.
5/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P2XA05031S
Zoro #
G7812186
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Dia.
5 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Height
6-3/16 in
For Axle Dia.
3/8 in
Wheel Width
1 1/4 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Width
2 1/2 in
Mounting Plate Length
3 5/8 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Thickness
5/32 in
Inside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in

Details

Wheel/Tread Material
Polyurethane
Load Rating
250 lb
Series
P2 Series
Caster Plate Hole Pattern
B
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Ball
Non-Marking
Yes
Number of Wheels
1
Swivel Lead
1-1/2 in
Operating Temperature Range
-40 to 180 Degrees F
Frame Finish
Zinc Plated
Load Rating Range
0 to 299 lb
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Core Material
Polypropylene
Caster Stem Type
Top Plate
Inside Bolt Hole Spacing
1-3/4 in X 2-13/16 in
Core Color
Grey
Item
Swivel Caster
Features
Ergonomic Caster, Smooth, Quiet Operation, Maintenance Free
Frame Color
Gray
Wheel/Tread Color
Black
Caster Sub-Type
Swivel
Wheel Core Type
Solid
Number of Mounting Holes
4
ESD Conductive
No
Caster Frame Material
Steel
Application
Hotel Equipment, Institutional Equipment, Food Service, Racks and Cases, Stock Carts, Laundry Trucks
Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
1-3/4 in X 3-1/16 in
Standards
ROHS Standards, FDA Compliant
Includes Thread Guards
No
Swivel Bearing Seal Type
Sealed
Swivel Construction
Swivel
NSF Listed
No
Includes Spanner Bushing
Yes
Load Capacity - Maximum
250 lb
Wheel Hardness Rating
55 Shore D
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
