  11. Swivel NSF-Listed Plate Caster, 450 lb., NSF-Listed Plate Type A
Zoro Select Swivel NSF-Listed Plate Caster, 450 lb., NSF-Listed Plate Type A 33H936 - main

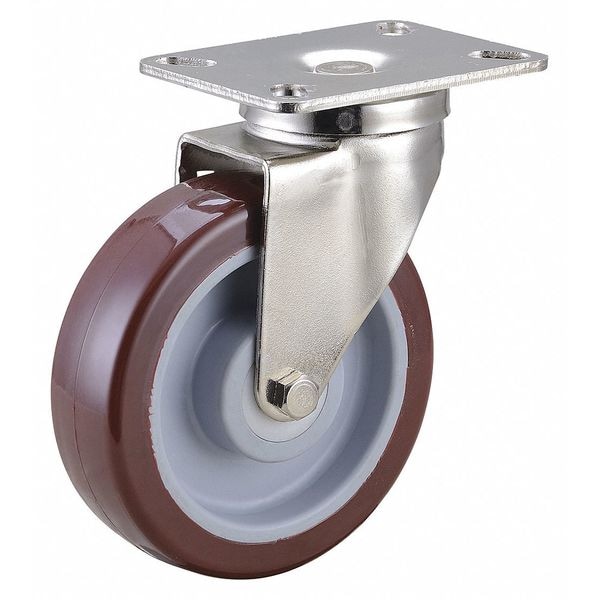

Swivel NSF-Listed Plate Caster, 450 lb., NSF-Listed Plate Type A

  • Mfr # 33H936

  • Zoro # G4803942

product price: $18.89
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
5 in
Wheel Width
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33H936
Zoro #
G4803942
UPC #
190735900758
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/2 in
Mounting Height
6 3/16 in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
5/16 in
Overall Height
6-3/16in
Stem Dia.
No Stem

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
450 lb
Wheel Bearing Type
Delrin
Wheel/Tread Color
Red
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
A
Frame Finish
Nickel Plated
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Extended Lead
No
Caster Brake Included
No
Thread Guards
No
Caster Temp. Range Available
Yes
Replacement Wheel
IX050520601G
Includes
Top and Bottom Grease Seals; Dust Cover
Wheel Color
Maroon
Standards
ANSI, ANSI ICWM, NSF
Caster Stem Type
No Stem/Plate Included
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpinless
Load Rating Range
300 to 999 lb
Includes Thread Guards
Yes
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Firm
Load Capacity - Maximum
450 lb
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
