Shop ALBION

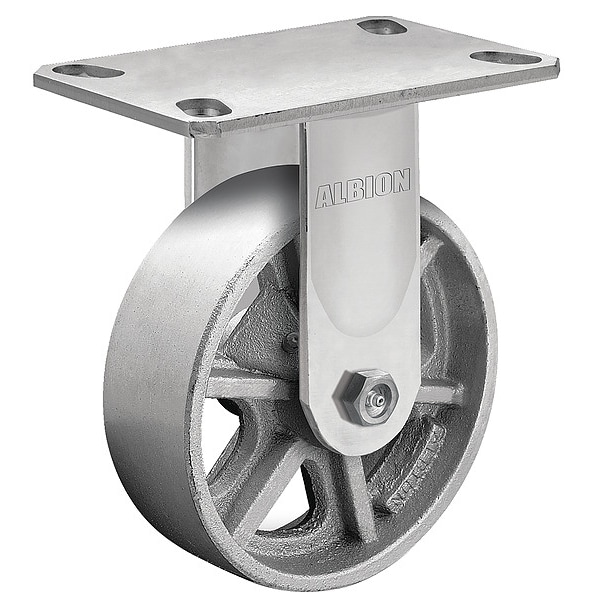

5" X 2" Cast Iron Rigid Caster, No Brake, Loads Up To 1300 lb

  • Mfr # 62CA05201R

  • Zoro # G7238954

product price:  $59.16
/ea

Key Features

Wheel/Tread Color
Cast Iron
Hub Length
3 3/16 in
Non-Marking
Yes
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Iron
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
62CA05201R
Zoro #
G7238954
UPC #
-
Country of Origin
China

Dimensions

Hub Length
3 3/16 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
5 in
Mounting Plate Size
4 1/2 in x 6 1/4 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Length
6 1/4 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Thickness
1/4 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Length
4.938 in
For Axle Dia.
1/2 in

Details

Wheel/Tread Color
Cast Iron
Non-Marking
Yes
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Iron
Frame Color
Silver
Caster Frame Material
Steel
Core Color
Gray
Includes Thread Guards
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Mounting Type
Plate
Tread Shape
Standard
Caster Sub-Type
Rigid
Item
Plate Caster
Series
62 Med-Heavy
Operating Temperature Range
Up to 800 Degrees F
Application
Movable Racks, Conveyor Or inDragline in Operations, Utility Trucks, Corregated Box Trucks, Caster Mounted Production Jigs And Fixtures
Caster Brake Type
No Brake
Load Rating Range
1000 to 2999 lb
Load Rating
1300 lb
System of Measurement
Inch
Wheel Bearing Type
Roller
Swivel Raceway Type
Roller
Caster Plate Hole Pattern
A
Number of Mounting Holes
4
Frame Finish
Zinc Plated
Wheel/Tread Material
Iron
Wheel Bearing Material
Roller
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Number of Wheels
1
Load Capacity - Maximum
1,300 lb
Mounting Hole Type
Slot
Wheel Hardness Rating
145 BHN
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Grease, Steel
Wheel Core Type
Solid

Description

Rigid, Plate Caster, Load Rating 1300 lb, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
