Shop ALBION

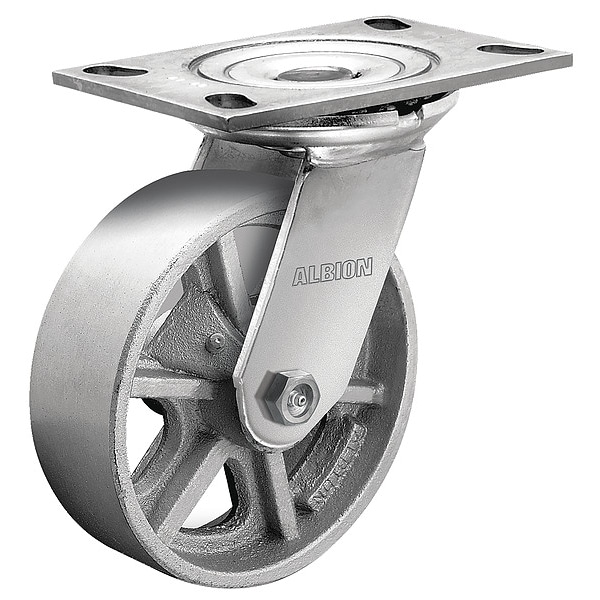

5" X 2" Cast Iron Swivel Caster, No Brake, Loads Up To 1300 lb

  • Mfr # 62CA05201S
  • Zoro # G7239313
product price:
$
97.99
/ea

Key Features

Wheel Bearing Material
Roller
Includes Thread Guards
No
Frame Color
Silver
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Core Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
62CA05201S
Zoro #
G7239313
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
1/2 in
Hub Length
3 3/16 in
Mounting Plate Size
4 1/2 in x 6 1/4 in
Wheel Dia.
5 in
Mounting Height
7 1/2 in
Wheel Width
2 in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Thickness
1/4 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/4 in

Details

Wheel Bearing Material
Roller
Includes Thread Guards
No
Frame Color
Silver
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Core Color
Gray
Tread Shape
Standard
Item
Plate Caster
Caster Brake Type
No Brake
Series
62 Med-Heavy
Swivel Raceway Type
Roller
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
A
System of Measurement
Inch
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
1000 to 2999 lb
Non-Marking
Yes
Operating Temperature Range
Up to 800 Degrees F
Wheel/Tread Color
Cast Iron
Swivel Construction
Kingpin
Load Rating
1300 lb
Number of Mounting Holes
4
Caster Mounting Type
Plate
Wheel/Tread Material
Iron
Wheel Bearing Type
Roller
Caster Sub-Type
Swivel
Wheel Core Material
Iron
Caster Frame Material
Steel
Application
Movable Racks, Conveyor Or inDragline in Operations, Utility Trucks, Corregated Box Trucks, Caster Mounted Production Jigs And Fixtures
Swivel Lead
1 1/2 in
Number of Wheels
1
Load Capacity - Maximum
1,300 lb
Wheel Core Type
Solid
For Surface Type
Asphalt, Grease, Steel
Wheel Hardness Rating
145 BHN
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 1300 lb, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
