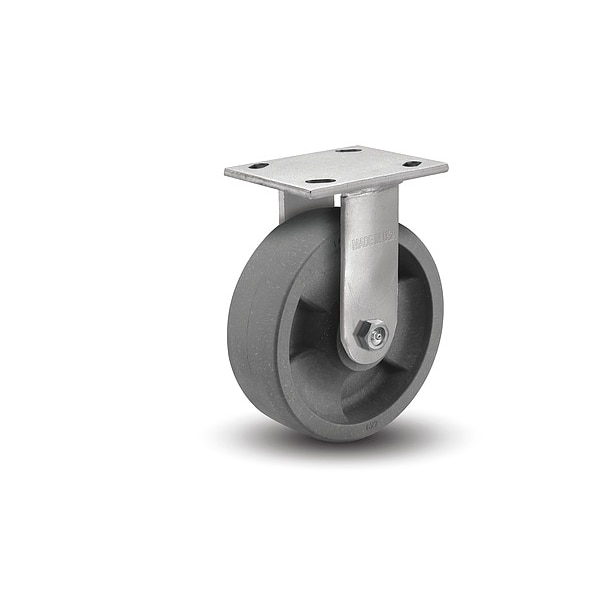

Albion 5" X 2" Non-Marking Nylon Hd Glass Filled Rigid Caster, No Brake, Loads Up To 1200 lb 16DT05201R - main

5" X 2" Non-Marking Nylon Hd Glass Filled Rigid Caster, No Brake, Loads Up To 1200 lb

  • Mfr # 16DT05201R

  • Zoro # G000712818

product price:  $55.99
/ea

Key Features

Non-Marking
Yes
Wheel/Tread Hardness Rating
Hard
Operating Temperature Range
-20 Degrees to 350 Degrees F
Tread Shape
Donut
Features
Harsh Environment Wheel, Heat Resistant Wheel, Impact Resistant Wheel, Kingpin, Medium Heavy Duty Caster
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
16DT05201R
Zoro #
G000712818
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Mounting Height
6-1/2 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4 1/2 in
Wheel Dia.
5 in
Hub Length
2 3/16 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in

Details

Non-Marking
Yes
Wheel/Tread Hardness Rating
Hard
Item
Plate Caster
Operating Temperature Range
-20 Degrees to 350 Degrees F
Tread Shape
Donut
Features
Harsh Environment Wheel, Heat Resistant Wheel, Impact Resistant Wheel, Kingpin, Medium Heavy Duty Caster
Load Rating
1200 lb
Frame Finish
Zinc Plated
Swivel Raceway Type
Double Ball
NSF Listed
Yes
Core Color
Grey
Wheel Core Type
Solid
Number of Mounting Holes
4
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Number of Wheels
1
Caster Sub-Type
Rigid
Wheel Bearing Type
Roller
Wheel/Tread Color
Grey
Frame Construction
Cold Forged
With Toe Plate
No
Swivel Lead
0 in
Wheel/Tread Material
Nylon
System of Measurement
Inch
Caster Mounting Type
Plate
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Caster Plate Hole Pattern
B
Caster Brake Type
No Brake
Standards
NSF Listed, RoHS Compliant
Wheel Core Material
Nylon
Caster Stem Type
Top Plate
Caster Frame Material
Steel
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Includes Spanner Bushing
Yes
Load Rating Range
1000 to 2999 lb
Load Capacity - Maximum
1,200 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Wheel Hardness Rating
75 Shore D
Mounting Hole Type
Slot
Caster Features
Heat-Resistant
Mounting Plate Shape
Rectangle

Description

Rigid, Plate Caster, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
