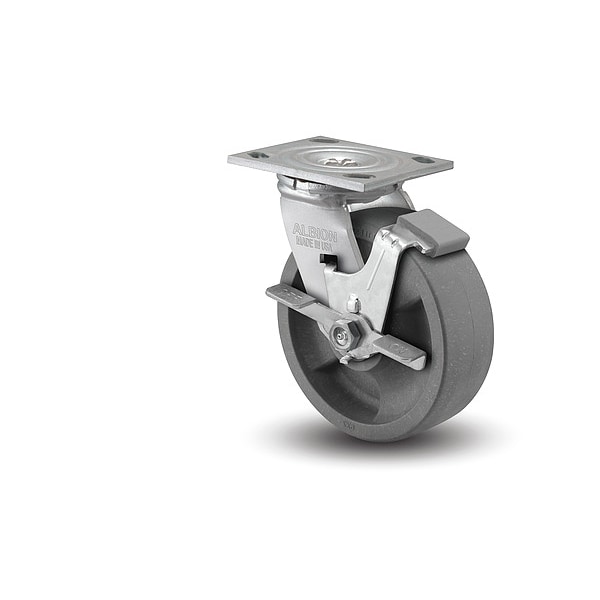

5" X 2" Non-Marking Nylon Hd Glass Filled Swivel Caster, Face Brake, Loads Up To 1200 lb

  • Mfr # 16DT05201SFBA
  • Zoro # G700712880
product price:
$
80.19
/ea

Key Features

Wheel Bearing Type
Roller
With Toe Plate
No
For Axle Dia.
1/2 in
Mounting Bolt Dia.
3/8 in
Caster Plate Hole Pattern
B
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16DT05201SFBA
Zoro #
G700712880
UPC #
-
Country of Origin
United States

Dimensions

For Axle Dia.
1/2 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4 1/8 in
Mounting Plate Thickness
1/4 in
Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Hub Length
2 3/16 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Fits Chest Size
Harsh Environment Wheel, Heat Resistant Wheel, Impact Resistant Wheel, Kingpin, Medium Heavy Duty Caster

Details

Wheel Bearing Type
Roller
With Toe Plate
No
Caster Plate Hole Pattern
B
Item
Plate Caster
Frame Construction
Cold Forged
Includes Thread Guards
No
Caster Brake Type
Side Brake
Features
Harsh Environment Wheel, Heat Resistant Wheel, Impact Resistant Wheel, Kingpin, Medium Heavy Duty Caster
Core Color
Gray
Number of Wheels
1
Swivel Lock Type
No Lock Included
Inside Bolt Hole Spacing
2 5/8 in x 3 in
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Frame Finish
Zinc Plated
Number of Mounting Holes
4
Wheel/Tread Color
Gray
System of Measurement
Inch
Outside Bolt Hole Spacing
3 in x 3 5/8 in
Wheel Core Type
Solid
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
Caster Sub-Type
Swivel
Standards
NSF Listed, RoHS Compliant
Swivel Lead
1 5/8 in
Operating Temperature Range
-20 Degrees to 350 Degrees F
Caster Frame Material
Steel
Non-Marking
Yes
Caster Mounting Type
Plate
Tread Shape
Donut
Wheel/Tread Material
Nylon
Wheel/Tread Hardness Rating
Extra Hard
NSF Listed
Yes
Swivel Construction
Kingpin
Load Rating
1200 lb
Includes Spanner Bushing
Yes
Load Rating Range
1000 to 2999 lb
Mounting Plate Shape
Rectangle
Caster Features
Heat-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Load Capacity - Maximum
1,200 lb
Brake Location
Left Side
Mounting Hole Type
Slot
Wheel Hardness Rating
75 Shore D

Description

Swivel, Plate Caster, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Donut
