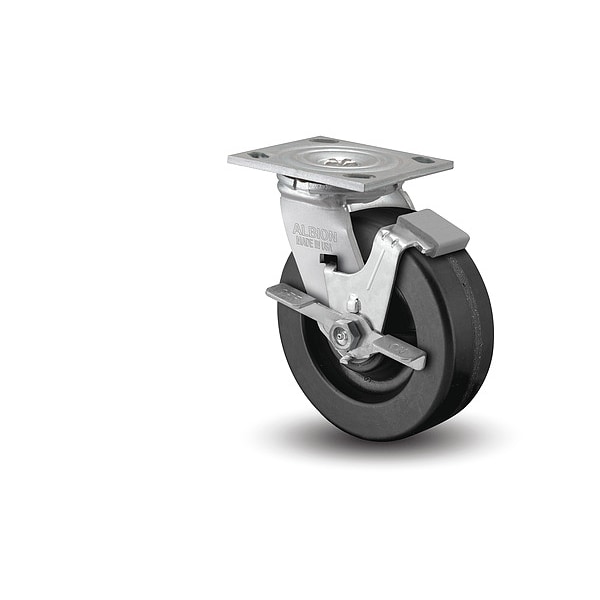

5" X 2" Non-Marking Phenolic Swivel Caster, Face Brake, Loads Up To 1000 lb

  • Mfr # 16TM05201SFBA

  • Zoro # G8661902

product price:
$
48.59
/ea

Key Features

Caster Mounting Type
Plate
Outside Bolt Hole Spacing
3 in x 3 5/8 in
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Mounting Bolt Dia.
3/8 in
Caster Brake Type
Side Brake
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16TM05201SFBA
Zoro #
G8661902
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
3/8 in
Swivel Radius
4 1/8 in
Wheel Width
2 in
Wheel Dia.
5 in
Mounting Plate Size
4 in x 4 1/2 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Mounting Height
6 1/2 in
Hub Length
2 3/16 in
Mounting Plate Width
4 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in

Details

Caster Mounting Type
Plate
Outside Bolt Hole Spacing
3 in x 3 5/8 in
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Item
Plate Caster
Caster Brake Type
Side Brake
Caster Plate Hole Pattern
B
Non-Marking
Yes
Number of Wheels
1
Features
Kingpin, Medium Heavy Duty Caster
Caster Frame Material
Steel
Inside Bolt Hole Spacing
2 5/8 in x 3 in
Caster Sub-Type
Swivel
Load Rating
1000 lb
Core Color
Black
Standards
NSF Listed, RoHS Compliant
System of Measurement
Inch
Frame Finish
Zinc Plated
Includes Thread Guards
No
Wheel/Tread Color
Black
Frame Construction
Cold Forged
Number of Mounting Holes
4
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
With Toe Plate
No
Wheel/Tread Material
Phenolic
Wheel Core Material
Phenolic
Tread Shape
Standard
Swivel Lead
1 5/8 in
NSF Listed
Yes
Wheel Core Type
Solid
Wheel Bearing Type
Roller
Swivel Raceway Type
Double Ball
Operating Temperature Range
-65 Degrees to 250 Degrees F
Includes Spanner Bushing
Yes
Load Rating Range
1000 to 2999 lb
Wheel/Tread Hardness Rating
Extra Hard
Load Capacity - Maximum
1,000 lb
Wheel Hardness Rating
90 Shore D
Mounting Hole Type
Slot
Brake Location
Left Side
For Surface Type
Asphalt, Grease, Steel, Wood
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
