  6. 5" X 2" Non-Marking Phenolic Swivel Caster, Total Lock Brake, Loads Up To 1000 lb

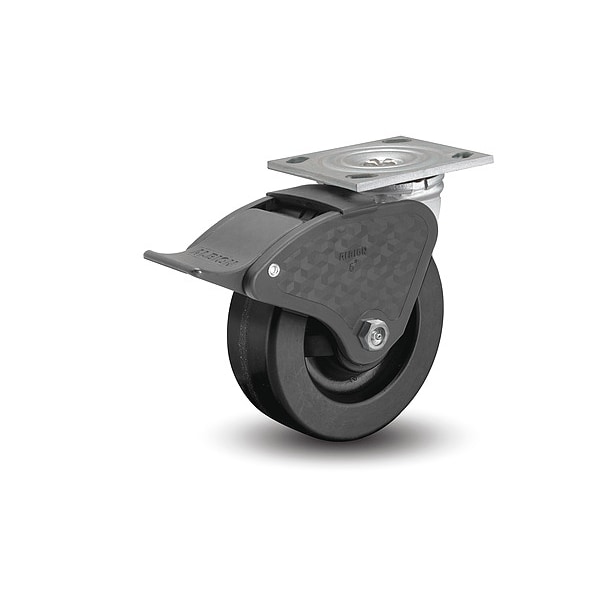

Albion 5" X 2" Non-Marking Phenolic Swivel Caster, Total Lock Brake, Loads Up To 1000 lb 16TM05201ST - main

5" X 2" Non-Marking Phenolic Swivel Caster, Total Lock Brake, Loads Up To 1000 lb

  • Mfr # 16TM05201ST

  • Zoro # G400712890

product price:  $90.49
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Total Lock
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16TM05201ST
Zoro #
G400712890
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6-1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
1/2 in
Swivel Radius
7 in
Hub Length
2 3/16 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in

Details

Item
Swivel with Total Lock Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Total Lock
Load Rating
1000 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
90 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Plate Hole Pattern
B
Includes Thread Guards
No
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Swivel Lock Type
No Lock Included
Caster Stem Type
Top Plate
Frame Finish
Zinc Plated
Wheel Core Material
Phenolic
Standards
NSF Listed, RoHS Compliant
NSF Listed
Yes
Frame Construction
Cold Forged
Features
Kingpin, Medium Heavy Duty Caster
Swivel Raceway Type
Double Ball
Operating Temperature Range
-65 Degrees to 250 Degrees F
With Toe Plate
No
Swivel Lead
1 5/8 in
Wheel Core Type
Solid
Swivel Construction
Kingpin
Load Rating Range
1000 to 2999 lb
Includes Spanner Bushing
Yes
Wheel/Tread Hardness Rating
Extra Hard
Load Capacity - Maximum
1,000 lb
For Surface Type
Asphalt, Grease, Steel, Wood
Brake Location
Face
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
