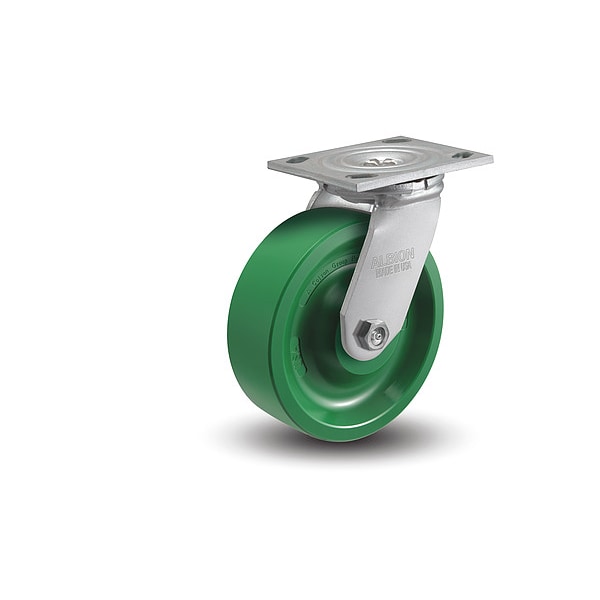

Albion 6" X 2" Non-Marking Polyurethane X-Treme Swivel Caster, No Brake, Loads Up To 1000 lb 16XI06201S - main

6" X 2" Non-Marking Polyurethane X-Treme Swivel Caster, No Brake, Loads Up To 1000 lb

  • Mfr # 16XI06201S

  • Zoro # G100712817

product price:  $86.35
/ea
Free Shipping & Returns

Key Features

Tread Shape
Donut
Wheel Bearing Type
Roller
Frame Finish
Zinc Plated
Swivel Construction
Kingpin
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
16XI06201S
Zoro #
G100712817
UPC #
-
Country of Origin
United States

Dimensions

Swivel Radius
4 3/4 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4 1/2 in
Wheel Width
2 in
Mounting Height
7-1/4 in
Wheel Dia.
6 in
Hub Length
2 3/16 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in

Details

Tread Shape
Donut
Wheel Bearing Type
Roller
Frame Finish
Zinc Plated
Swivel Construction
Kingpin
Caster Sub-Type
Swivel
Swivel Lead
1 3/4 in
Caster Brake Type
No Brake
Caster Frame Material
Steel
Item
Swivel Caster
Wheel Core Material
Polyurethane
Frame Construction
Cold Forged
Includes Thread Guards
No
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Plate Hole Pattern
B
Wheel/Tread Hardness Rating
Hard
System of Measurement
Inch
Wheel/Tread Color
Green
Number of Mounting Holes
4
Wheel Core Type
Solid
Core Color
Green
Caster Mounting Type
Plate
Features
Zinc Plating Provides An Attractive Finish Which Increases Corrosion Resistance and Provides Longer Caster Life
Non-Marking
Yes
Wheel/Tread Material
Polyurethane
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Number of Wheels
1
Load Rating
1000 lb
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
With Toe Plate
No
Caster Stem Type
Top Plate
Operating Temperature Range
Up to 180 Degrees F
Includes Spanner Bushing
Yes
Load Rating Range
1000 to 2999 lb
Wheel Hardness Rating
70 Shore D
Load Capacity - Maximum
1,000 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
