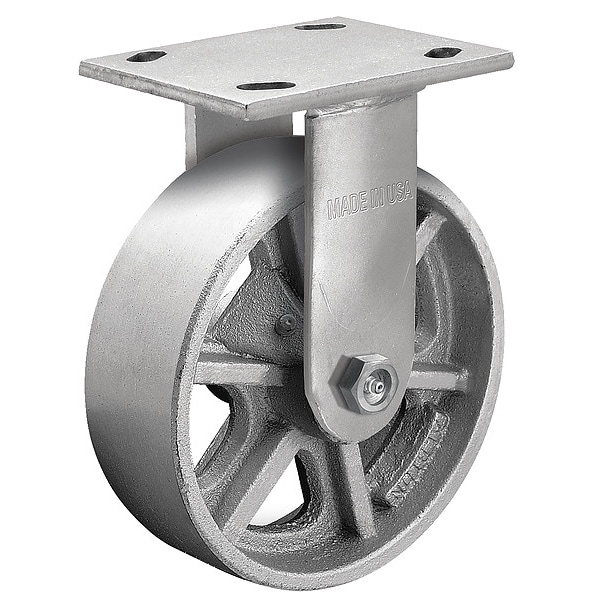

Albion 8" X 2" Cast Iron Rigid Caster, No Brake, Loads Up To 1250 lb 16CA08201R - main

8" X 2" Cast Iron Rigid Caster, No Brake, Loads Up To 1250 lb

  • Mfr # 16CA08201R

  • Zoro # G7239584

product price:  $69.79
/ea

Key Features

Caster Frame Material
Steel
Frame Color
Silver
Number of Wheels
1
Caster Mounting Type
Plate
Series
16 Series HD
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
16CA08201R
Zoro #
G7239584
UPC #
-
Country of Origin
United States

Dimensions

Swivel Radius
None- Rigid Caster
Wheel Width
2 in
Mounting Plate Size
4 in x 4 1/2 in
Hub Length
2 3/16 in
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Mounting Height
9-1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
1/4 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in

Details

Caster Frame Material
Steel
Frame Color
Silver
Number of Wheels
1
Caster Mounting Type
Plate
Series
16 Series HD
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Plate Hole Pattern
B
Caster Stem Type
Top Plate
Operating Temperature Range
Up to 800 Degrees F
Application
Shop/Distribution Carts, Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Grey
Includes Thread Guards
No
Tread Shape
Standard
Wheel Core Material
Iron
Item
Rigid Caster
Frame Finish
Zinc Plated
Non-Marking
No
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Tread
Cast Iron
Caster Brake Type
No Brake
Core Color
Grey
Load Rating
1250 lb
Number of Mounting Holes
4
Caster Sub-Type
Rigid
Wheel Bearing Type
Roller
Wheel Bearing Material
Roller
Wheel/Tread Hardness Rating
Hard
Load Rating Range
1000 to 2999 lb
Wheel/Tread Material
Iron
System of Measurement
Inch
Load Capacity - Maximum
1,250 lb
Wheel Hardness Rating
145 BHN
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Grease, Steel
Wheel Core Type
Solid

Description

Rigid, Plate Caster, Load Rating 1250 lb, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
