  11. V-Grove Rgd Cstr, Cst Iron, 6 in., 2000 lb.
Shop All Plate Casters
Zoro Select

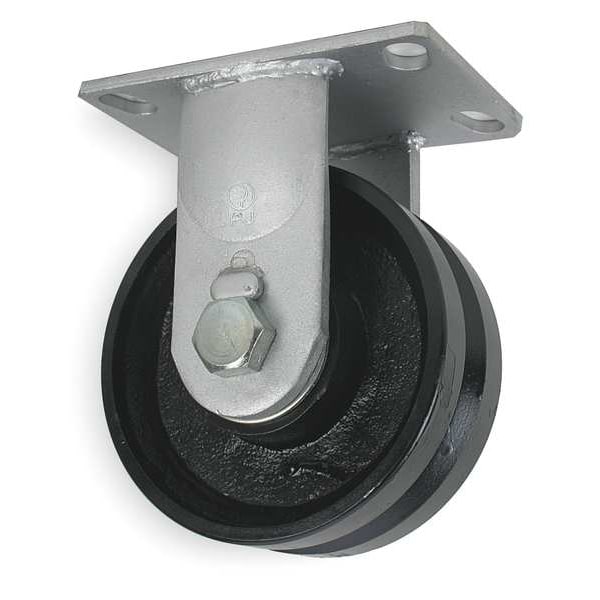

V-Grove Rgd Cstr, Cst Iron, 6 in., 2000 lb.

original price: $57.17
7% off
new price: $52.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Load Rating Range Medium-Duty
  • Caster Sub-Type Rigid
  • Caster Product Group Rigid Caster
  • Load Rating 2000 lb
  • Caster Wheel Shape V-Groove
See all product information

Product Information

Dimensions

Wheel Dia. 6 in
Wheel Width 2 1/2 in
Overall Height 7-1/2"
Mounting Height 7 1/2 in
Mounting Plate Size 4-1/2 in x 6-1/4 in
Mounting Bolt Dia. 1/2 in
Plate Size 4-1/2" x 6-1/4"
Caster Plate Size 4-1/2" x 6-1/4"
Recommended Track Size 3-3/8 in x 5-1/4 in

Details

Item V-Groove Track-Wheel Plate Caster
Caster Load Rating Range Medium-Duty
Caster Sub-Type Rigid
Caster Product Group Rigid Caster
Load Rating 2000 lb
Caster Wheel Shape V-Groove
Caster Wheel/Tread Material Cast Iron
Wheel/Tread Material Iron
Wheel/Tread Hardness Rating Extra Hard
Wheel Bearing Type Roller
Mounting Plate Bolt Hole Pattern A
Inside Bolt Hole Spacing 2-7/16 in x 4-15/16 in
Outside Bolt Hole Spacing 3-3/8 in x 5-1/4 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Cast Iron
Core Color Black
Caster Plate Thickness 1/4"
Caster Swivel Lock Type No Lock Included
Caster Core Material Cast Iron
Replacement Wheel 1NWC1
Caster Wheel Bearings Roller
Wheel Color Black
Caster Temp. Range Available No
Frame Material Steel
Caster Plate Hole Pattern A
Plate Caster Bolt Hole Pattern A
Plate Thickness 1/4"
Load Rating Range 1000 to 2999 lb
Tread Shape V-Groove
Swivel Construction Kingpin
Includes Thread Guards No

Description

Rigid, V-Groove Track-Wheel Plate Caster, Load Rating 2000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 1/2 in, Wheel/Tread Material Iron, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape V-Groove
