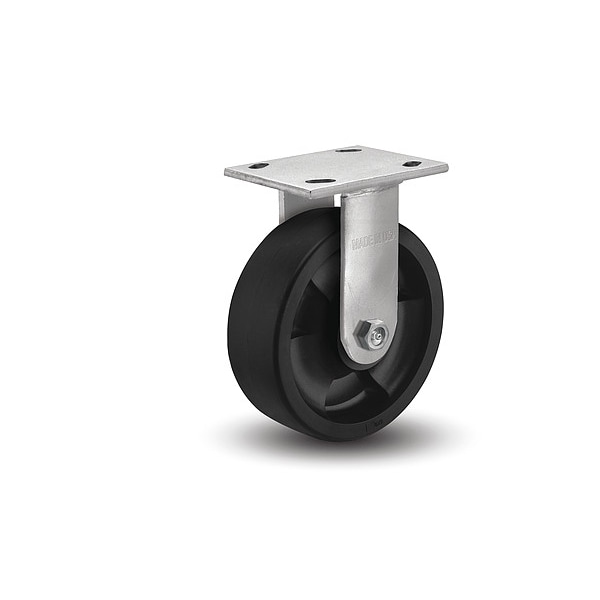

8" X 2" Non-Marking Nylon Glass Filled Hi Temp Rigid Caster, No Brake, Loads Up To 1250 lb

  • Mfr # 16HT08201R
  • Zoro # G200712847
product price:
$
93.79
/ea

Key Features

Frame Construction
Cold Forged
Mounting Plate Thickness
1/4 in
Load Rating
1250 lb
Number of Wheels
1
Swivel Construction
Kingpin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16HT08201R
Zoro #
G200712847
UPC #
-
Country of Origin
United States

Dimensions

Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Plate Size
4 in x 4 1/2 in
For Axle Dia.
1/2 in
Mounting Height
9 1/2 in
Wheel Dia.
8 in
Hub Length
2 3/16 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Fits Chest Size
Harsh Environment Wheel, Heat Resistant Wheel, Kingpin, Medium Heavy Duty Caster

Details

Frame Construction
Cold Forged
Load Rating
1250 lb
Number of Wheels
1
Swivel Construction
Kingpin
Caster Frame Material
Steel
Frame Finish
Zinc Plated
With Toe Plate
No
Wheel/Tread Material
Nylon
System of Measurement
Inch
NSF Listed
Yes
Wheel Bearing Type
Roller
Features
Harsh Environment Wheel, Heat Resistant Wheel, Kingpin, Medium Heavy Duty Caster
Number of Mounting Holes
4
Swivel Lead
0 in
Standards
NSF Listed, RoHS Compliant
Caster Brake Type
No Brake
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Caster Plate Hole Pattern
B
Caster Sub-Type
Rigid
Includes Thread Guards
No
Tread Shape
Donut
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Core Color
Black
Swivel Raceway Type
Double Ball
Outside Bolt Hole Spacing
3 in x 3 5/8 in
Item
Plate Caster
Operating Temperature Range
-20 Degrees to 480 Degrees F
Wheel/Tread Color
Black
Wheel Core Material
Nylon
Caster Mounting Type
Plate
Non-Marking
Yes
Inside Bolt Hole Spacing
2 5/8 in x 3 in
Load Rating Range
1000 to 2999 lb
Includes Spanner Bushing
Yes
Load Capacity - Maximum
1,250 lb
Caster Features
Heat-Resistant
Wheel Hardness Rating
75 Shore D
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Rigid, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
