Shop ZORO SELECT

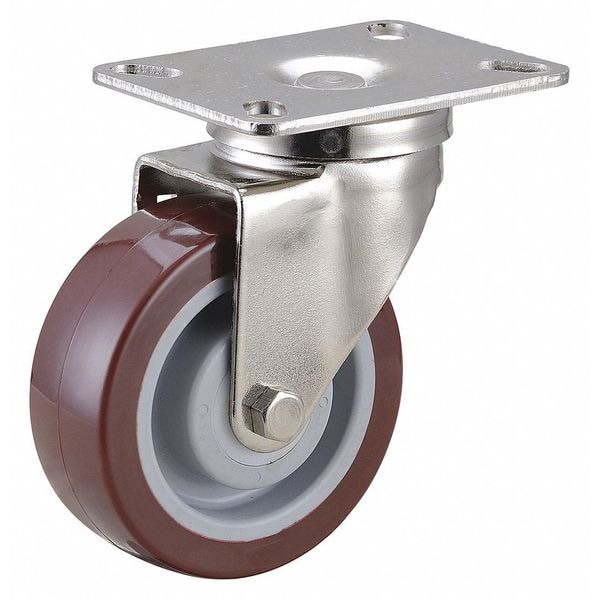

Swivel NSF-Listed Plate Cstr, 375 lb., Delrin Bearing

  • Mfr # 33H935

  • Zoro # G4803933

product price:
$
13.89
/ea

Key Features

Overall Height
5-3/16"
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Mounting Bolt Dia.
5/16 in
Non-Marking
Yes
Wheel Dia.
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
33H935
Zoro #
G4803933
UPC #
190735900741
Country of Origin
China

Dimensions

Overall Height
5-3/16"
Mounting Bolt Dia.
5/16 in
Wheel Dia.
4 in
Wheel Width
1 1/2 in
Stem Dia.
No Stem
Mounting Plate Size
3 1/8 in x 4 1/8 in
Mounting Height
5 3/16 in
Mounting Plate Thickness
5/32in

Details

Inside Bolt Hole Spacing
1-3/4 in x 3 in
Non-Marking
Yes
Extended Lead
No
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Frame Finish
Nickel Plated
Number of Wheels
1
Load Rating
375 lb
Caster Brake Included
No
Thread Guards
No
Wheel Color
Maroon
Standards
ANSI, ANSI ICWM, NSF
Caster Sub-Type
Swivel
Core Color
Gray
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Plate Hole Pattern
A
Item
Plate Caster
Includes
Top and Bottom Grease Seals; Dust Cover
Replacement Wheel
IX04105206G
Caster Stem Type
No Stem/Plate Included
Caster Frame Material
Steel
Caster Brake Type
No Brake
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Delrin
Load Rating Range
300 to 999 lb
Includes Thread Guards
Yes
Wheel Core Material
Polyolefin
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
Load Capacity - Maximum
375 lb
Wheel Hardness Rating
95 Shore A
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 375 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
