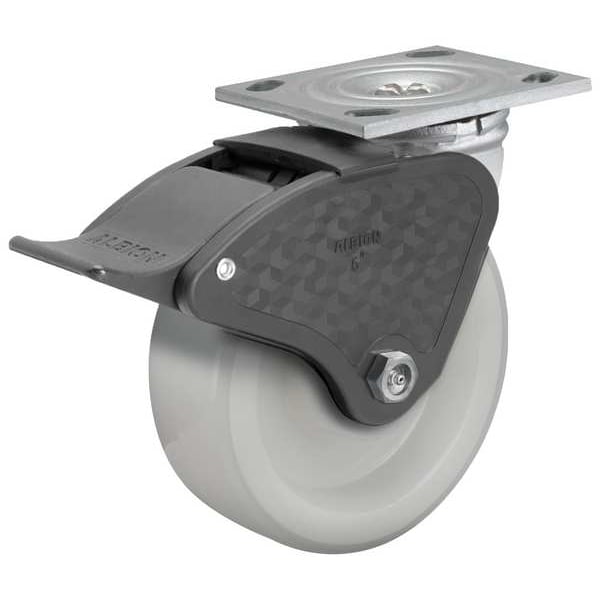

8" X 2" Non-Marking Nylon Swivel Caster, Total Lock Brake, Loads Up To 1100 lb

  • Mfr # 16NW08201ST
  • Zoro # G800713022
product price:
$
144.99
/ea
Free Shipping & Returns

Key Features

Mounting Plate Size
4 in x 4 1/2 in
Wheel Dia.
8 in
Caster Sub-Type
Swivel
Non-Marking
Yes
Number of Mounting Holes
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16NW08201ST
Zoro #
G800713022
UPC #
-
Country of Origin
United States

Dimensions

Mounting Plate Size
4 in x 4 1/2 in
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
8 5/8 in
Wheel Width
2 in
For Axle Dia.
1/2 in
Mounting Height
9 1/2 in
Mounting Plate Thickness
1/4 in
Hub Length
2 3/16 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 1/2 in

Details

Caster Sub-Type
Swivel
Non-Marking
Yes
Number of Mounting Holes
4
Number of Wheels
1
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Soft
Frame Finish
Zinc Plated
Load Rating
1100 lb
Wheel/Tread Color
White
Item
Plate Caster
Operating Temperature Range
-20 Degrees to +250 Degrees F
Inside Bolt Hole Spacing
2 5/8 in x 3 in
Wheel Bearing Type
Roller
Tread Shape
Donut
Wheel/Tread Material
Nylon
Wheel Core Material
Nylon
Caster Mounting Type
Plate
Features
Brake, Harsh Environment Wheel, Kingpin, Medium Heavy Duty Caster
Standards
NSF Listed, RoHS Compliant
Swivel Lead
1 3/4 in
Wheel Core Type
Solid
Swivel Raceway Type
Double Ball
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Frame Construction
Cold Forged
Caster Plate Hole Pattern
B
Caster Brake Type
Total Lock
System of Measurement
Inch
Caster Frame Material
Steel
With Toe Plate
No
Outside Bolt Hole Spacing
3 in x 3 5/8 in
NSF Listed
Yes
Core Color
White
Includes Thread Guards
No
Includes Spanner Bushing
Yes
Load Rating Range
1000 to 2999 lb
Load Capacity - Maximum
1,100 lb
Wheel Hardness Rating
85 Shore D
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Mounting Plate Shape
Rectangle
Brake Location
Face

Description

Swivel, Plate Caster, Load Rating 1100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Donut
