  6. Plate Caster, Swivel, Rubber, 5 1/8"H

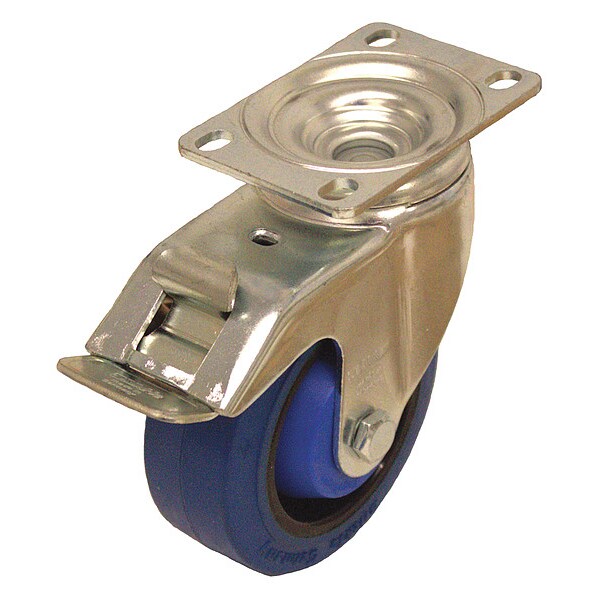

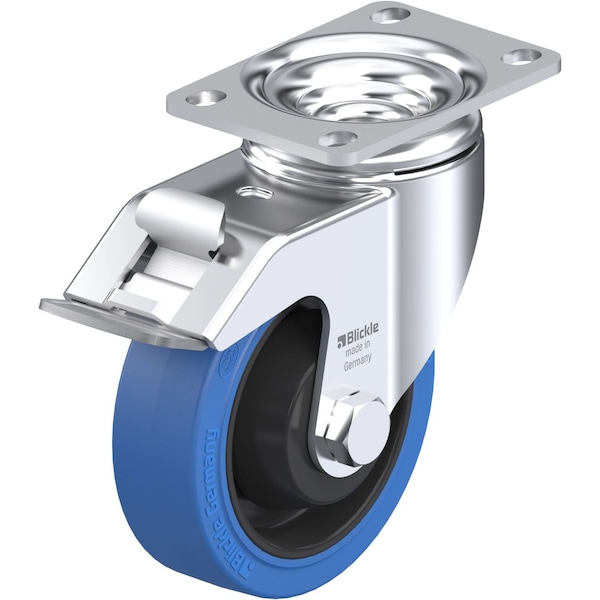

Zoro Select Plate Caster, Swivel, Rubber, 5 1/8"H L-POEV 102KA-12-FI-SB - main

Plate Caster, Swivel, Rubber, 5 1/8"H

  • Mfr # L-POEV 102KA-12-FI-SB

  • Zoro # G3575063

product price:  $36.95
/ea

Key Features

Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Core Color
Black
Mounting Bolt Dia.
9 mm
Load Rating Range
Light-Medium Duty
Thread Guards
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-POEV 102KA-12-FI-SB
Zoro #
G3575063
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
9 mm
Overall Height
5-1/8in
Wheel Width
1 1/4 in
Mounting Height
5 1/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Swivel Radius
3-7/16 in
Wheel Dia.
4 in
Mounting Plate Length
3 5/8 in
Mounting Plate Width
2 1/2 in
Outside Slot Spacing - Length
3.063 in
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in
Inside Slot Spacing - Width
1.75 in
For Axle Dia.
8 mm
Overall Wheel Width
1 1/4 in
Mounting Plate Thickness
1/8in

Details

Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Core Color
Black
Load Rating Range
Light-Medium Duty
Thread Guards
Yes
Non-Marking
Yes
Includes
Stop-Fix Total-Lock Brake
Extended Lead
No
Includes Thread Guards
Yes
Wheel Bearing Type
Ball
Load Rating
400 lb
Caster Plate Hole Pattern
C
Caster Brake Included
Yes
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Wheel/Tread Hardness Rating
Soft
Caster Temp. Range Available
Yes
Wheel Core Material
Nylon
Wheel Color
Blue
Features
Floor Protective, Noise Reduction
Caster Brake Type
Total Lock
Number of Wheels
1
Tread Color
Blue
Tread Shape
Standard
Standards
DIN EN 12530
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Tread
Standard
Replacement Wheel
Mfr. No. POEV 102/10K-SB
Caster Sub-Type
Swivel
Swivel Lock Type
Total Lock
Swivel Construction
Kingpin
System of Measurement
Inch
Item
Swivel Caster with Total Lock
Wheel/Tread Material
Rubber
Caster Mounting Type
Plate
Wheel/Tread Color
Blue
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Accessories
Optional: RI-03.12 (Directional Lock)
ESD Conductive
No
Load Capacity
400 lb
Series
L Series
Compatible With
POEV 102/10K-SB
Load Capacity - Maximum
440 lb
Wheel Hardness Rating
65 Shore A
Mounting Plate Shape
Rectangle
Caster Features
Debris-Resistant
Brake Location
Rear
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-15 Degrees To 175 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 400 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
