Shop ALBION

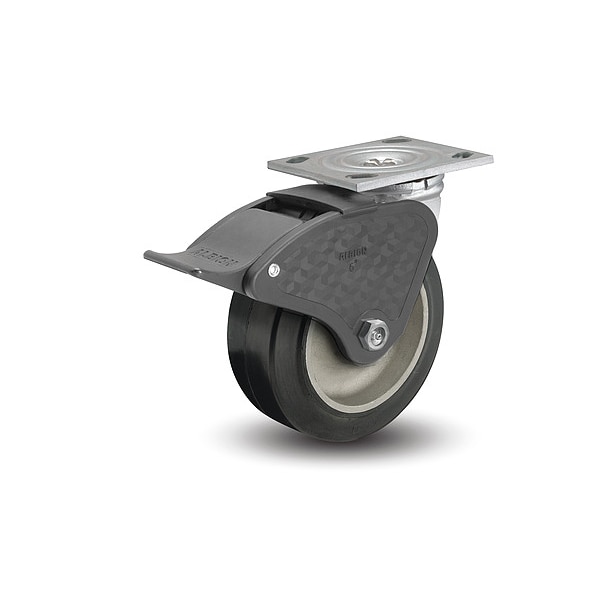

8" X 2" Non-Marking Rubber Mold On Swivel Caster, Total Lock Brake, Loads Up To 600 lb

  • Mfr # 16MD08201ST

  • Zoro # G900712918

product price:
$
111.99
/ea
Free Shipping & Returns

Key Features

NSF Listed
Yes
Frame Construction
Cold Forged
Caster Sub-Type
Swivel
Swivel Raceway Type
Double Ball
Load Rating
600 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16MD08201ST
Zoro #
G900712918
UPC #
-
Country of Origin
United States

Dimensions

Mounting Plate Size
4 in x 4 1/2 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Wheel Dia.
8 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
1/2 in
Hub Length
2 3/16 in
Mounting Plate Width
4 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in

Details

NSF Listed
Yes
Frame Construction
Cold Forged
Caster Sub-Type
Swivel
Swivel Raceway Type
Double Ball
Load Rating
600 lb
Item
Plate Caster
Swivel Construction
Kingpin
Wheel/Tread Material
Rubber
Caster Plate Hole Pattern
B
Inside Bolt Hole Spacing
2 5/8 in x 3 in
System of Measurement
Inch
Caster Mounting Type
Plate
Features
Bigger Kingpin, Medium Heavy Duty Caster
Core Color
Grey
Wheel Core Type
Solid
Outside Bolt Hole Spacing
3 in x 3 5/8 in
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Brake Type
Total Lock
Non-Marking
No
Swivel Lead
1 3/4 in
With Toe Plate
No
Number of Mounting Holes
4
Application
Distribution Carts, Dollies, Floor Trucks, Warehouse Trucks, Waste Disposal Trucks
Wheel Core Material
Aluminum
Caster Frame Material
Steel
Standards
NSF Listed, RoHS Compliant
Includes Thread Guards
No
Wheel Bearing Type
Roller
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Hard
Wheel/Tread Color
Black
Tread Shape
Standard
Includes Spanner Bushing
Yes
Load Capacity - Maximum
600 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Brake Location
Face
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Wheel Hardness Rating
80 Shore A

Description

Swivel, Plate Caster, Load Rating 600 lb, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking No, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
