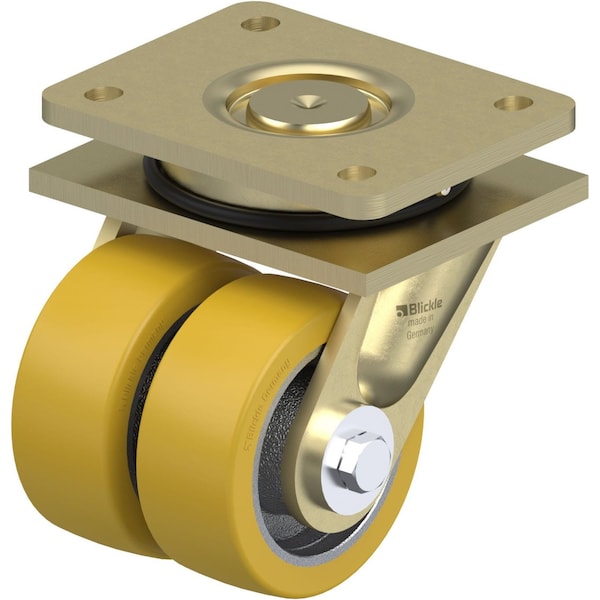

PlateCaster, Swivl, Polyurethane, 5 11/16"H

  • Mfr # LSD-GTH 100K
  • Zoro # G1626080
product price:
$
280.99
/ea
Free Shipping & Returns

Key Features

Thread Guards
No
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Mounting Bolt Dia.
3/8 in
Wheel Width
1 9/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSD-GTH 100K
Zoro #
G1626080
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Width
1 9/16 in
Wheel Dia.
4 in
Swivel Radius
3 7/8 in
Overall Height
5-23/32"
Mounting Height
5 11/16 in
Mounting Plate Size
4-3/8in x 5-1/2in
Inside Slot Spacing - Length
4.125 in
Mounting Plate Thickness
5/16 in
Overall Wheel Width
1 9/16 in
Mounting Plate Length
4 5/16 in
Outside Slot Spacing - Length
4.125 in
Outside Slot Spacing - Width
3.156 in
For Axle Dia.
10 mm
Inside Slot Spacing - Width
2.969 in
Fits Chest Size
Floor Protective, Reduced Swivel Forces

Details

Thread Guards
No
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Wheel Color
Yellow
Caster Brake Type
No Brake
Load Rating
1585 lb
Inside Bolt Hole Spacing
2-15/16 in x 4-1/8 in
Replacement Wheel
Mfr. No. GTH 100/15K
Outside Bolt Hole Spacing
3-5/32 in x 4-9/64 in
Caster Temp. Range Available
Yes
Caster Brake Included
No
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Item
Plate Caster
Caster Frame Material
Steel
Caster Plate Hole Pattern
C
Core Color
Silver
Extended Lead
No
Features
Floor Protective, Reduced Swivel Forces
Non-Marking
Yes
Standards
DIN EN 12532, ANSI ICWM
Number of Wheels
2
Wheel Core Material
Iron
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Number of Mounting Holes
4
Tread Shape
Standard
Wheel Bearing Type
Ball
Load Rating Range
Medium-Duty
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Light Brown
ESD Conductive
No
Tread
Standard
Series
LSD Series
Load Capacity
720 kg
Caster Mounting Type
Plate
Compatible With
GTH 100/15K
Load Capacity - Maximum
1,785 lb
Wheel Hardness Rating
92 Shore A
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 1585 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
