  6. 8" X 2" Non-Marking Rubber Soft Flat Swivel Caster, Face Brake, Loads Up To 675 lb

This item is Discontinued.

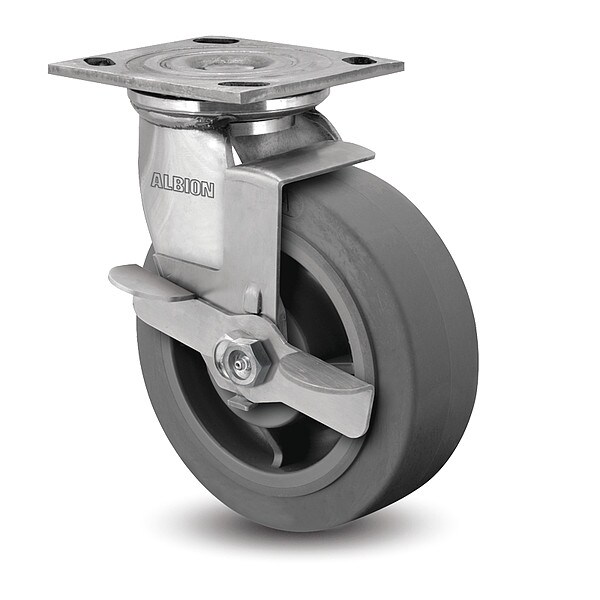

Albion 8" X 2" Non-Marking Rubber Soft Flat Swivel Caster, Face Brake, Loads Up To 675 lb 05XS08201SFBD

8" X 2" Non-Marking Rubber Soft Flat Swivel Caster, Face Brake, Loads Up To 675 lb (Discontinued)

  • Mfr # 05XS08201SFBD
  • Zoro # G000712849
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
05XS08201SFBD
Zoro #
G000712849
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9-1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Swivel Radius
6 3/8 in
Hub Length
2 3/16 in

Details

Item
Swivel with Face Brake
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
Face Brake
Load Rating
675 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Grey
Wheel Hardness Rating
65-75 Shore A
Number of Mounting Holes
4
Tread Shape
Donut
Caster Frame Material
Stainless Steel
Core Color
Grey
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Plate Hole Pattern
B
Wheel Core Material
Rubber
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Caster Stem Type
Top Plate
Frame Finish
Polished
Swivel Raceway Type
Double Ball
NSF Listed
Yes
With Toe Plate
No
Includes Spanner Bushing
Yes
Wheel Core Type
Solid
Operating Temperature Range
-45 Degrees to 180 Degrees F
Standards
NSF, RoHS
Application
Bakery Troughs, Clean Room, Dollies, Food Processing, Food Service, Hospital Waste Management, Laboratory Equipment, Marine, Pharmaceutical Equipment
Features
Ergonomic Wheel, Floor Protective Wheel, Harsh Environment Wheel, Metal Debris Resistant Wheel, Non-Marking Wheel, Premium Rubber Wheel, Shock-absorbing Wheel, Water Resistant Wheel
Frame Construction
Formed
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Soft
Swivel Lead
2 3/8 in
Wheel Type
Flat-Free
Wheel Bearing Material
Stainless Steel
Load Rating Range
300 to 999 lb
Load Capacity - Maximum
675 lb

Description

Swivel, Plate Caster, Load Rating 675 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Face Brake, Tread Shape Donut
