  11. 8" X 2" Rubber Pneumatic Rigid Caster, No Brake, Loads Up To 210 lb
Albion 8" X 2" Rubber Pneumatic Rigid Caster, No Brake, Loads Up To 210 lb 16SF08227R - main

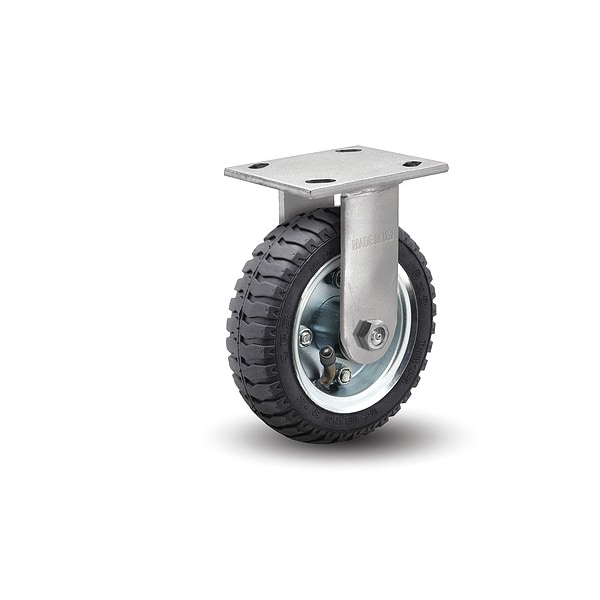

8" X 2" Rubber Pneumatic Rigid Caster, No Brake, Loads Up To 210 lb

  • Mfr # 16SF08227R

  • Zoro # G200719709

product price: $88.39
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
8 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16SF08227R
Zoro #
G200719709
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9-1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
Tire Rim Dia.
2 7/16 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Width
4 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
210 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Plate Hole Pattern
B
Tread
Centipede
Frame Finish
Zinc Plated
Operating Temperature Range
Not Rated
Caster Stem Type
Top Plate
Swivel Construction
Kingpin
Includes
Assembly Components, Axle, Rig, Wheel
Swivel Raceway Type
Double Ball
Wheel Core Material
Steel
Wheel Type
Pneumatic
Includes Thread Guards
No
Features
Cushioned Ride, Protects Floor, Shock Absorbing
Wheel/Tread Hardness Rating
Soft
Load Rating Range
0 to 299 lb
Tread Color
Black
Application
Shop/Distribution Carts, Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks
Swivel Lock Type
No Lock Included
Replacement Wheel
Mfr. No. SF0822708
Load Capacity - Maximum
210 lb
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Rubber, Steel, Tile, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid

Description

Rigid, Plate Caster, Load Rating 210 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Steel, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
