Shop All Stem Casters
Zoro Select

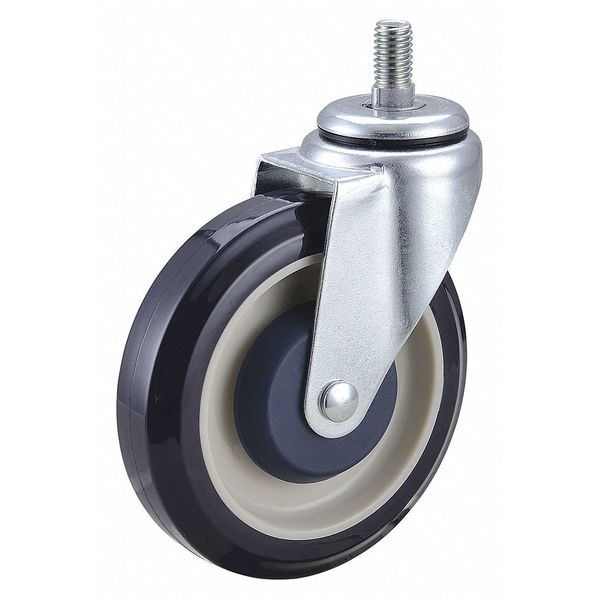

Swivel Stem Caster, Polyurthn, 5 in, 350 lb

product price: $9.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Stem Type Threaded
  • Tread Shape Standard
  • Wheel Width 1 1/4 in
  • Mounting Height 5 7/8 in
  • Load Rating 350 lb
See all product information

Product Information

Dimensions

Wheel Width 1 1/4 in
Mounting Height 5 7/8 in
Stem Length 1 in
Thread Size 1/2"-13
Caster Thread Size 1/2-13
Stem Dia. 1/2 in
Wheel Dia. 5 in
Overall Height 5 7/8 in
Caster Stem Size 1/2"-13 x 1 in

Details

Item Threaded Stem Caster for Shopping Carts
Caster Stem Type Threaded
Tread Shape Standard
Load Rating 350 lb
Load Rating Range 300 to 999 lb
Wheel/Tread Material Polyurethane
Application Shopping Cart
Non-Marking Yes
Caster Brake Type No Brake Included
Caster Frame Material Steel
Wheel Bearing Type Precision Ball
Number of Wheels 1
Frame Finish Zinc Plated
Caster Load Rating Range Light-Medium Duty
Includes Thread Guards
Wheel Color Blue
Caster Core Material Polyolefin
Caster Product Group Swivel Caster
Caster Brake Included No
Replacement Wheel Mfr. No. XS050310608
Caster Temp. Range Available Yes
Core Color Gray
Caster Wheel/Tread Material Polyurethane
Caster Wheel Bearings Ball
Caster Sub-Type Swivel
Features 5/16 in Dia Axle with Lock Nut, Kingpin 1/2 in Steel Rivet
Caster Raceway Double Ball
Standards ANSI/ICWM
Caster Temp. Range -40 Degrees to 175 Degrees F
Operating Temperature Range -40 Degrees to 175 Degrees F
Swivel Raceway Type Double Ball
Wheel Core Material Plastic
Wheel/Tread Color Blue

Description

Threaded Stem Caster for Shopping Carts, Swivel Caster, 350 lb Load Rating, 300 to 999 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Polyurethane Wheel/Tread Material, 5 7/8 in Mounting Height, Precision Ball, 1/2 In.-13 x 1 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
