  6. 8" X 2" Rubber Pneumatic Swivel Caster, Face Brake, Loads Up To 210 lb

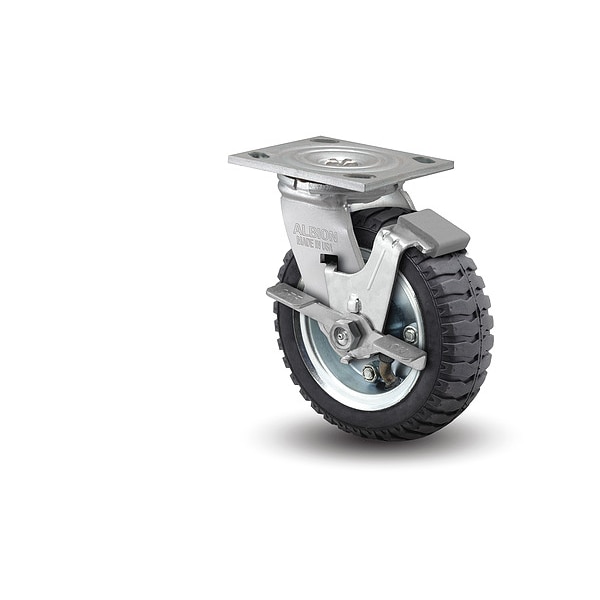

Albion 8" X 2" Rubber Pneumatic Swivel Caster, Face Brake, Loads Up To 210 lb 16SF08227SFBA - main

8" X 2" Rubber Pneumatic Swivel Caster, Face Brake, Loads Up To 210 lb

  • Mfr # 16SF08227SFBA

  • Zoro # G400719653

product price:  $109.75
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
Side Brake
Wheel Dia.
8 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16SF08227SFBA
Zoro #
G400719653
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9-1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
Tire Rim Dia.
2 7/16 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
Side Brake
Load Rating
210 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Plate Hole Pattern
B
Wheel/Tread Hardness Rating
Soft
Frame Finish
Zinc Plated
Includes Thread Guards
No
Wheel Type
Pneumatic
Tread Color
Black
Swivel Construction
Kingpin
Features
Cushioned Ride, Protects Floor, Shock Absorbing
Swivel Raceway Type
Double Ball
Includes
Assembly Components, Axle, Rig, Wheel
Load Rating Range
0 to 299 lb
Application
Shop/Distribution Carts, Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks
Tread
Centipede
Swivel Lock Type
No Lock Included
Replacement Wheel
Mfr. No. SF0822708
Operating Temperature Range
Not Rated
Caster Stem Type
Top Plate
Wheel Core Material
Steel
Load Capacity - Maximum
210 lb
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Rubber, Steel, Tile, Wood
Brake Location
Left Side
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 210 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Steel, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
