  6. 8" X 3" Non-Marking Nylon Tronix Rigid Caster, No Brake, Loads Up To 4100 lb

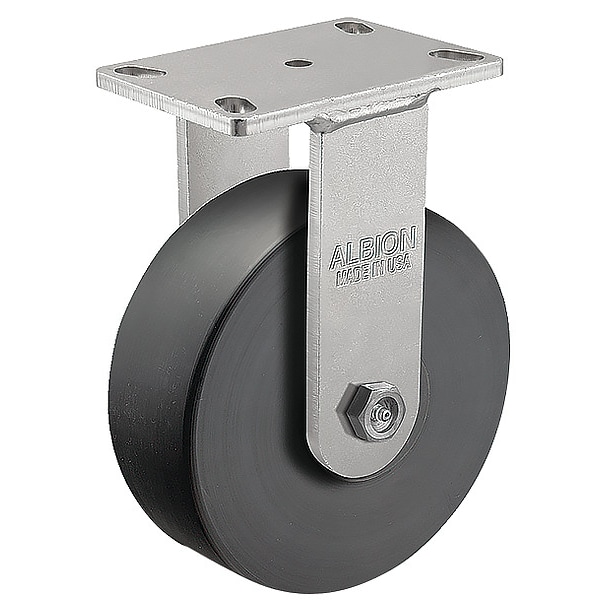

Albion 8" X 3" Non-Marking Nylon Tronix Rigid Caster, No Brake, Loads Up To 4100 lb 310NX08528R - main

8" X 3" Non-Marking Nylon Tronix Rigid Caster, No Brake, Loads Up To 4100 lb

  • Mfr # 310NX08528R

  • Zoro # G7282573

product price:  $360.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Wheel/Tread Material
Polyolefin
Caster Brake Type
No Brake
Wheel Width
2 in
Mounting Height
10-1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
310NX08528R
Zoro #
G7282573
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
10-1/8 in
Mounting Plate Size
4 1/2 in x 6 1/4 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
Hub Length
3 1/2 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
3/4 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
6 1/4 in
Outside Slot Spacing - Width
3.375 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Polyolefin
Caster Brake Type
No Brake
Load Rating
4100 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in X 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in X 4-15/16 in
Caster Plate Hole Pattern
A
Wheel/Tread Hardness Rating
Hard
Series
310 Contender
Wheel Core Material
Polyolefin
Wheel Bearing Material
Precision
Caster Stem Type
Top Plate
Frame Color
Silver
Application
Conveyor-Drawn Tow-Trucks, Heavy Dty Battery Racks, Production Dollies, Heavy Duty Dough Troughs
Operating Temperature Range
-30 Degrees to 220 Degrees F
Includes Thread Guards
No
Load Rating Range
3000 to 5999 lb
Swivel Raceway Type
Precision Ball
Frame Finish
Zinc Plated
Load Capacity - Maximum
4,100 lb
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Oil, Rubber, Steel, Tile, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle

Description

Rigid, Plate Caster, Load Rating 4100 lb, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
