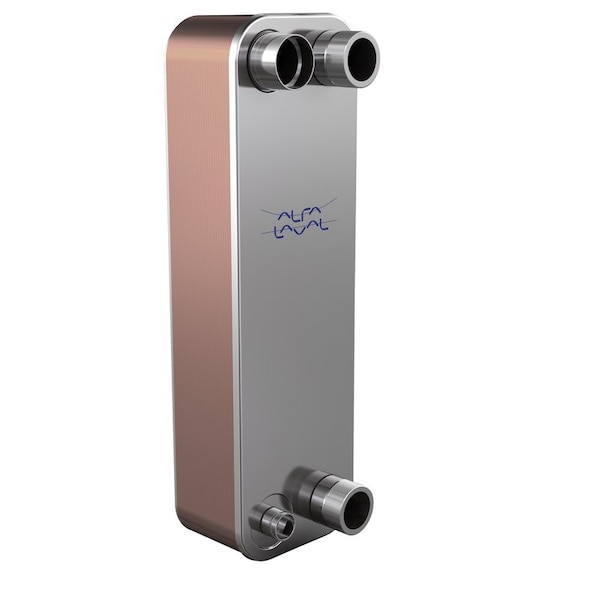

Brazed Plate Heat Exchanger, Evaporator & Economizer, 86 Plates, 2 1/8 in Solder Connections
Mfr # ACH220EQ-86AM-F
Zoro # G502753548
product price:Â
$
7,000.99
/ea
Additional $55.00 delivery surcharge applies per item.
Key Features
Type
Brazed Plate heat exchanger
Application
Evaporator & Economizer
Features
Compact
Easy to install
Self-cleaning
Low level of service and maintenance is required
All units are pressure and leak tested
Gasket free
Standards
UL/CRN
Length (In.)
7.52
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ACH220EQ-86AM-F
- Zoro #
- G502753548
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Length (In.)
- 7.52
- Width (In.)
- 9.18
- Height (In.)
- 24.26
- Depth (in.)
- 7.61
- Connection Size (Hot, Cold)
- 2 1/8", 2 1/8"
Details
- Item
- Heat Exchanger
- Type
- Brazed Plate heat exchanger
- Application
- Evaporator & Economizer
- Features
- Compact Easy to install Self-cleaning Low level of service and maintenance is required All units are pressure and leak tested Gasket free
- Standards
- UL/CRN
- Remarks
- • Compact • Easy to install • Self-cleaning • Low level of service and maintenance is required • All units are pressure and leak tested • Gasket free
- Plates
- 86
- Weight (Lbs.)
- 97.9
- Agency Compliance
- UL/CRN
- Connection Type (Hot, Cold)
- Soldering, Soldering
Description
The ALFA LAVAL ACH220EQ-86AM-F is a compact brazed plate heat exchanger designed for evaporator and economizer applications. Built with an 86-plate, single circuit evaporator configuration, this unit provides efficient heat transfer in a gasket-free design for added durability and reliability. It features 2 1/8 in hot and cold soldering connections, has been pressure and leak tested, and is manufactured to meet UL/CRN standards.
Key Features:
- Brazed plate heat exchanger designed for efficient thermal transfer in evaporator and economizer systems.
- 86-plate, single circuit evaporator design supports dependable performance in refrigeration and heat exchange applications.
- 2 1/8 in hot and cold connections with soldering connection type for secure installation.
- Gasket-free construction helps reduce potential leak points and supports long service life.
- Pressure and leak tested to help ensure product integrity and reliable operation.
- Compact design allows easier integration into space-constrained equipment layouts.
- Dimensions: 24.26 in H x 9.18 in W x 7.52 in L; depth: 7.61 in.
- Unit weight is 97.9 lb.
- Meets UL/CRN standards.
