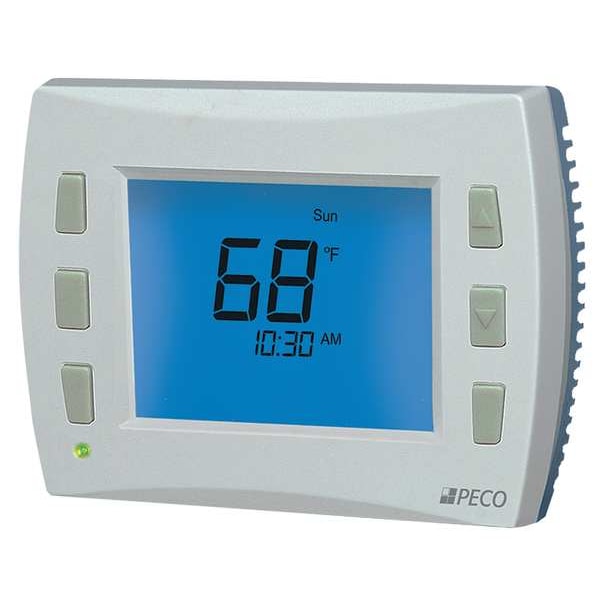

Low Voltage Thermostat, 7, 5-2, 5-1-1 Programs, 3 H, 2 C, Hardwired/Battery/Power Stealing, 24VAC

  • Mfr # T8532-001

  • Zoro # G1816841

product price:  $108.99
/ea
Free Shipping & Returns

Key Features

Voltage
24VAC
Stages Heat
3
Mounting Type
Horizontal
Color
White
Control Range
50 Degrees to 90 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T8532-001
Zoro #
G1816841
UPC #
879978000950
Country of Origin
China

Dimensions

Height
4 5/16"
Width
5 23/32"
Display Size
8 sq in
Depth
1 5/16 in
Screen Width
2 1/2 in
Digit Size
Easy Read
Overall Depth
1 5/16 in
Overall Width
5 3/4 in
Overall Height
4 5/16 in
Screen Height
3 1/4 in

Details

Item
Low Voltage Thermostat
Voltage
24VAC
Stages Heat
3
Mounting Type
Horizontal
Color
White
Control Range
50 Degrees to 90 Degrees F
System Switching
Auto-Heat-Cool-Off-Aux-Setback
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery/Power Stealing
750mV Compatible
No
Programs per Week
7, 5-2, 5-1-1
Agency Compliance
ASHRAE 90.1-9, California Title 24
Remote Sensing Capability
Yes
Display Color
Blue
Dehumidification Control
No
Terminal Designations
A, C, E, G, RC, RH, S1, S2, S3, SC, W1 (B/O), W2 (AUX), Y1, Y2
Includes
Mounting Hardware
Battery Backup
Yes
Automatic Changeover
Yes
Temp. Settings per Day
0, 1, 2, 4
Key Pad Lockout
Yes
Temperature Limiting
Yes
For Use With
SB200-001 Occupancy Sensor, SP155-017 INDOOR REMOTE SENSOR, 70327 OUTDOOR REMOTE SENSOR, 70481 SD Card Performance PRO
Programmable Fan
Yes
Humidification Control
No
Temporary Temperature Hold
Yes
Display Type
Digital
Footnotes
1, 2, 3, 6, 7, 8
Features
A Secure Digital (SD) Card Capability for Download/Upload Configuration and Program Settings
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Batteries Included
Yes
WiFi Capability
No
Low Battery Indicator
Yes
Temporary Program Override
Yes
Fan Switching
Auto-on
Filter Indicator
Yes
Mounting
Horizontal
Standards
ASHRAE 90.1-9, California Title 24
Occupancy Sensor
Includes Occupancy Sensor
Stages
3H/2C Conventional, 4H/2C Heat Pump
Control Type
Push Button
Type
Digital Programmable Multi Stage H/C or HP
Minimum Operating Humidity
25 %
Battery Type
(2) AA Batteries
Operating Humidity Range
25% to 99% RH
System/Fan Settings
Auto-Cool-Heat-Off/Auto-On
Differential Type
Fixed
Shape
Rectangle
Application/Stages
Heat and Cool; 3H/2C Conventional, 4H/2C Heat Pump
Housing Color
White
Temperature Readout
Yes
Sensor Location
Remote
Minimum Control Temperature
50 Degrees F
Frequency
50 Hz, 60 Hz
Thermostat Type
Low Voltage
Smart Connectivity
No Connectivity
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux
Temperature Differential
1 Degrees F
Number of Heating Stages - Heat Pump System
4
Mounting Direction/Shape
Horizontal
Fan Settings
Auto-On
Number of Zones
6
Includes Batteries
Yes
Temperature Scale
Fahrenheit/Celsius
Programming Capability
5-1-1, 5-2, 7 Day
Backlit Screen Color
Blue
Number of Heating Stages - Conventional System
3
Maximum Control Temperature
90 Degrees F
Temperature settings per day
0, 1, 2, 4
Minimum Operating Temperature
0 Degrees F
Changeover Type
Automatic and Manual
System Settings
Auto-Cool-Heat-Off
Electrical Connection Type
Hardwired
External Power Source
Furnace
Occupancy Sensor Compatibility
2NCC2, 2NCC8
Millivolt Compatible
No
Backlit Screen
Yes
Mounting Direction
Horizontal
Temperature Control Range
50 Degrees to 90 Degrees F
Operating Temperature Range
0 Degrees to 120 Degrees F
Filter Change Reminder
Yes
Application
Heat and Cool
Contact Rating
24V AC
Number of Cooling Stages - Conventional System
2
Includes Positive Off
Yes
Number of Cooling Stages - Heat Pump System
2
Maximum Operating Humidity
99 %
Maximum Operating Temperature
120 Degrees F

Description

Low Voltage Thermostat, Stages Heat 3, Stages Cool 2, Temp. Settings per Day 0, 1, 2, 4, Programs per Week 7, 5-2, 5-1-1, or Nonprogrammable, Terminal Designations A, C, E, G, RC, RH, S1, S2, S3, SC, W1 (B/O), W2 (AUX), Y1, Y2, WiFi Capability No, System Switching Auto-Heat-Cool-Off-Aux-Setback, Fan Switching Auto-On, Display Size 8 sq in, Display Type Digital, Display Color Blue, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control No
